Datamax M-Class Mark II Maintenance Manual

Removal and Replacement
4-28

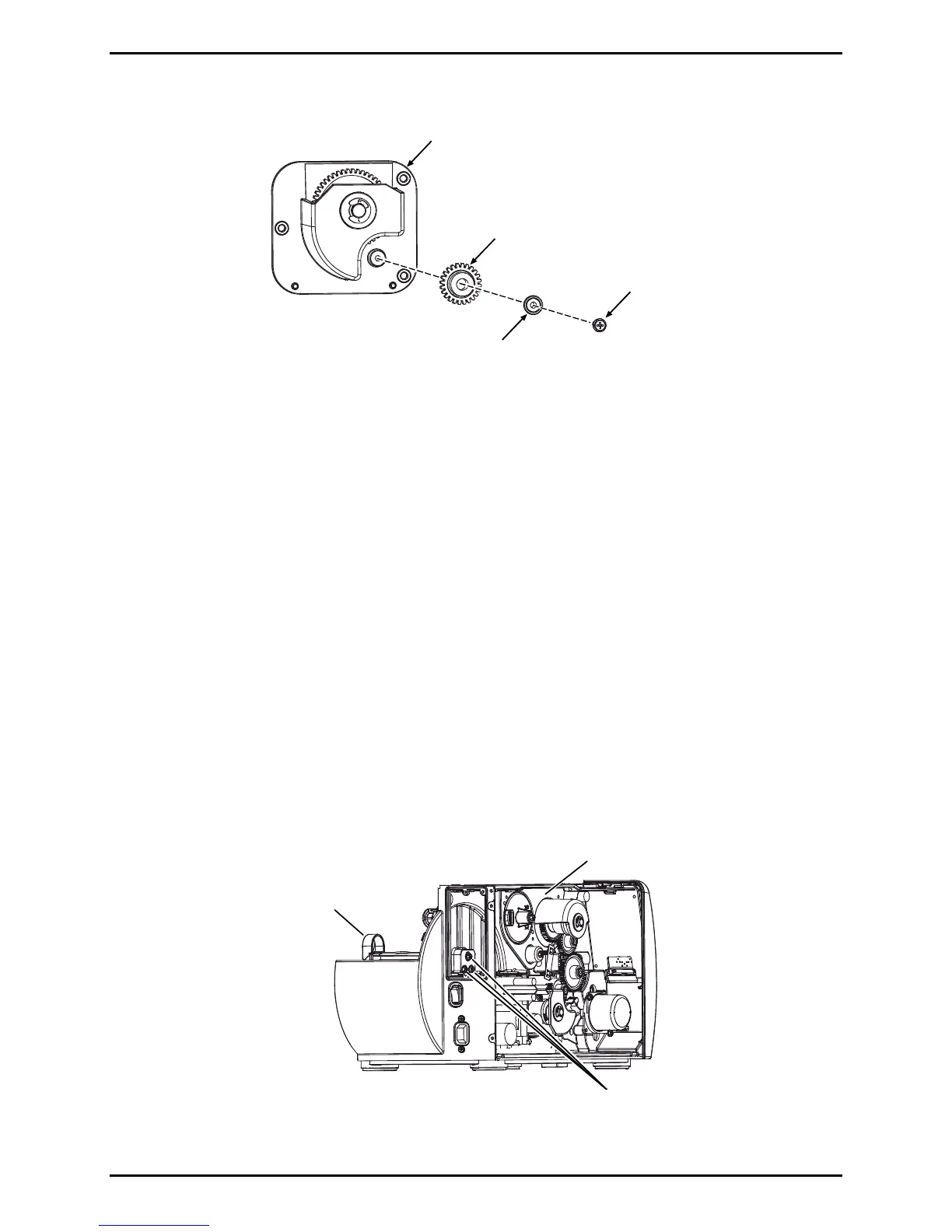

Assembly
Casting
Spur
Gear
Idler
Post
Screw
Installation:
1. Place the Idler Post into the Spur Gear, and then secure the components in the
Assembly Casting with the Screw.
2. Install the Internal Rewinder; see Section 4.10.
4.11 Media Supply Assembly
4.11.1 Media Hanger
Removal:
1. Remove the Main Logic PCB; see Section 4.4.
2. Remove the three Hanger Screws that secure the Media Hanger to the Centerplate and
then remove the Media Hanger.
Hanger
Screws
Media
Hanger
Centerplate
