Punch

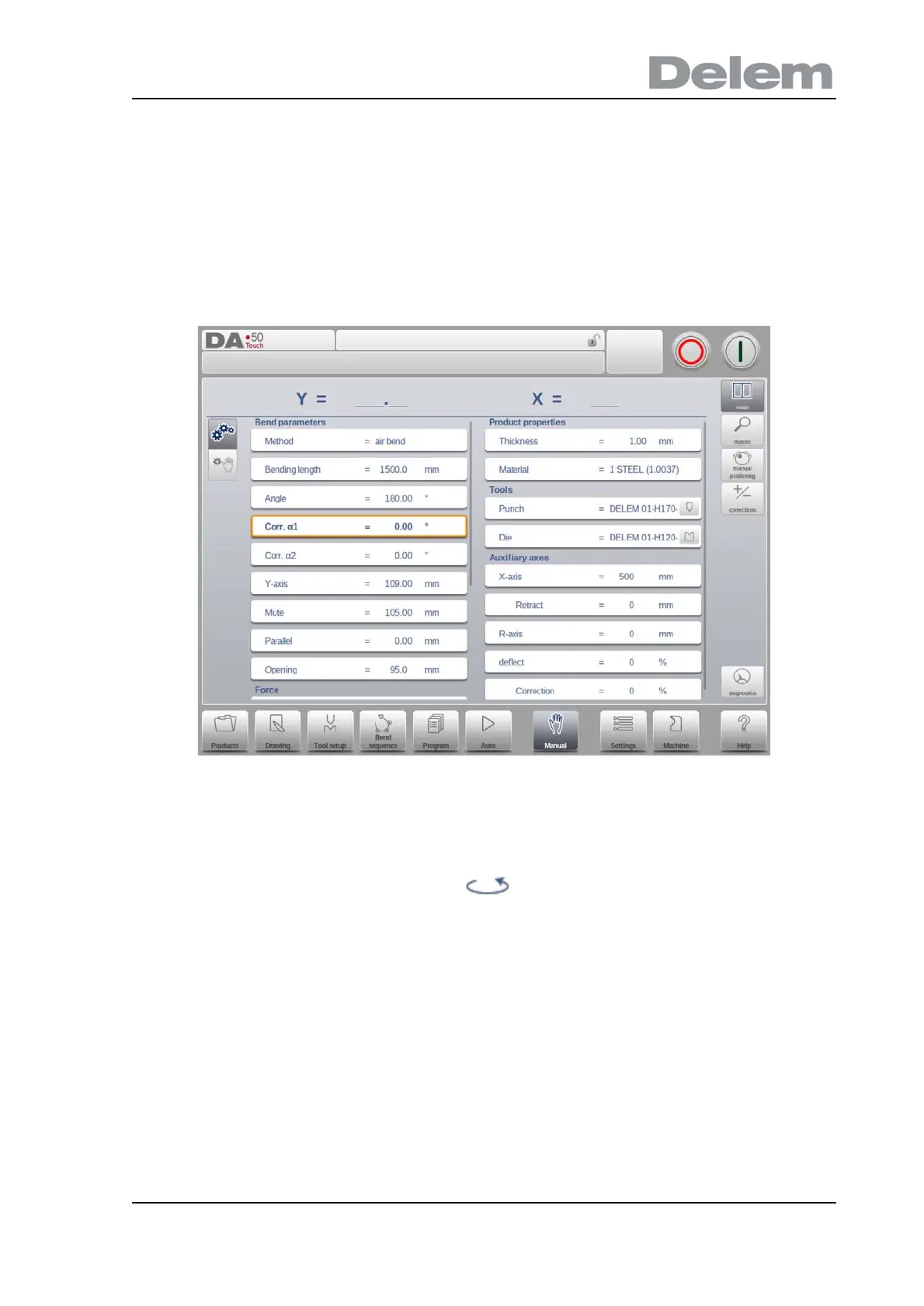

The name (ID) of the selected punch. Tap to modify or select from the punch library.
Die
The name (ID) of the selected die. Tap to modify or select from the die library.
The tool selection enables you to directly type the desired tool, or by tapping the list key on the
keyboard, the library will be shown and a selection can be made. When typing, the filter
function will narrow down your selection in order to rapidly find your tool.
Turn Punch can be used to turn around the applied tool (back to front). When this is done, and
active, the indicator is shown behind the punch or die.
Gauges
Auxiliary axis
If you have one or more auxiliary axes (for instance an X-axis, R-axis, Z-axis or part
support) the parameters of these axes appear here. When you have a R1-axis and a R2
axis the programmed R1 value is automatically copied to the R2-axis value. The R2-axis
value can, if necessary, be changed afterwards.
Retract
The retract distance of the axis during the bend. The "backgauge retract" is started at
the pinching point.
