10.2.5. Big radius punch
Height
The total height of the tool. Important: this height value will be used in the bend depth
calculation.
Radius
The radius of the punch tip.
Radius height

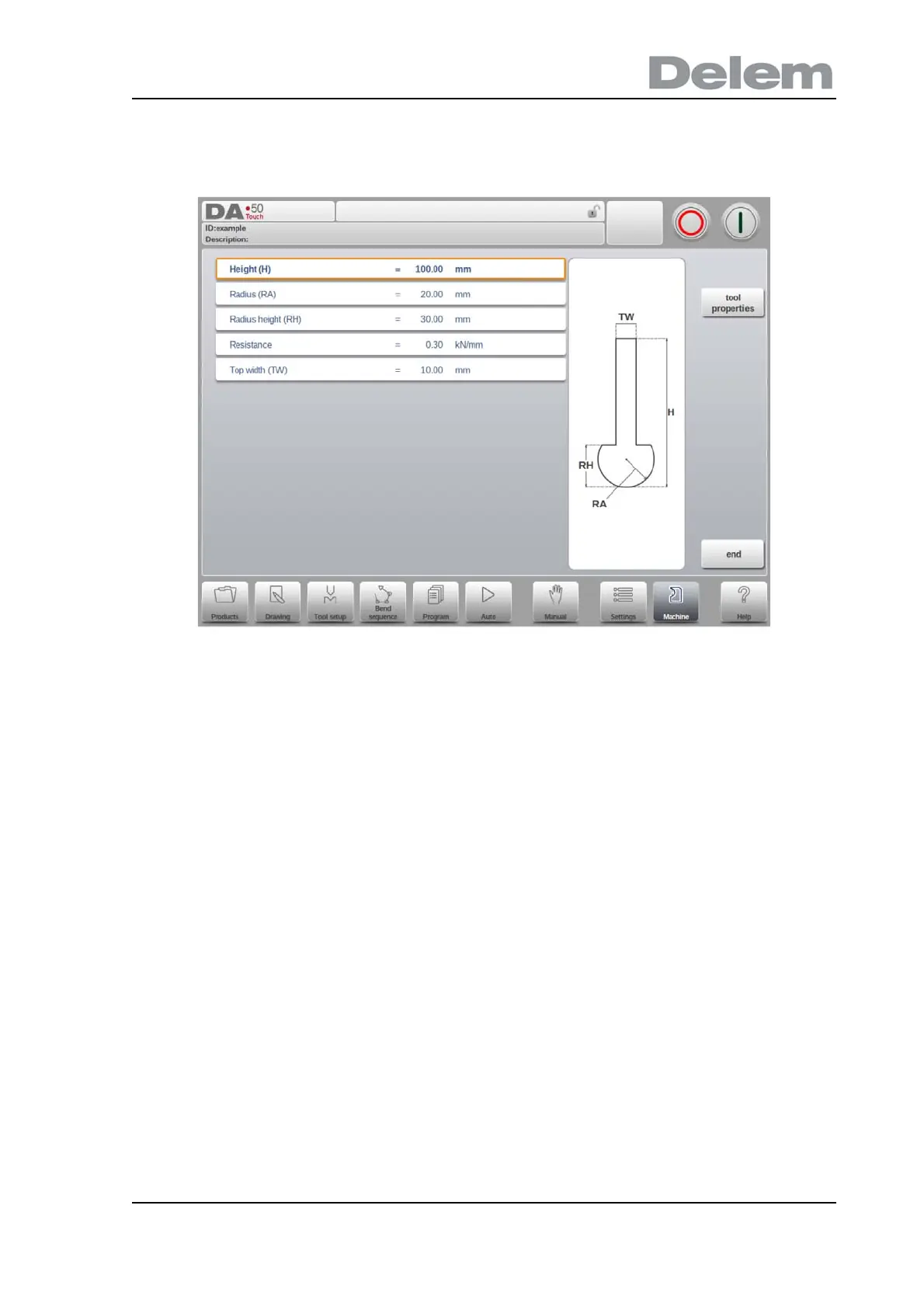

The height of the big radius part of the special tool as indicated in the drawing on the
screen for the basic data.
Resistance
Maximum allowable force on the tool.
Top width
The width of the tool on the top side of the punch.
