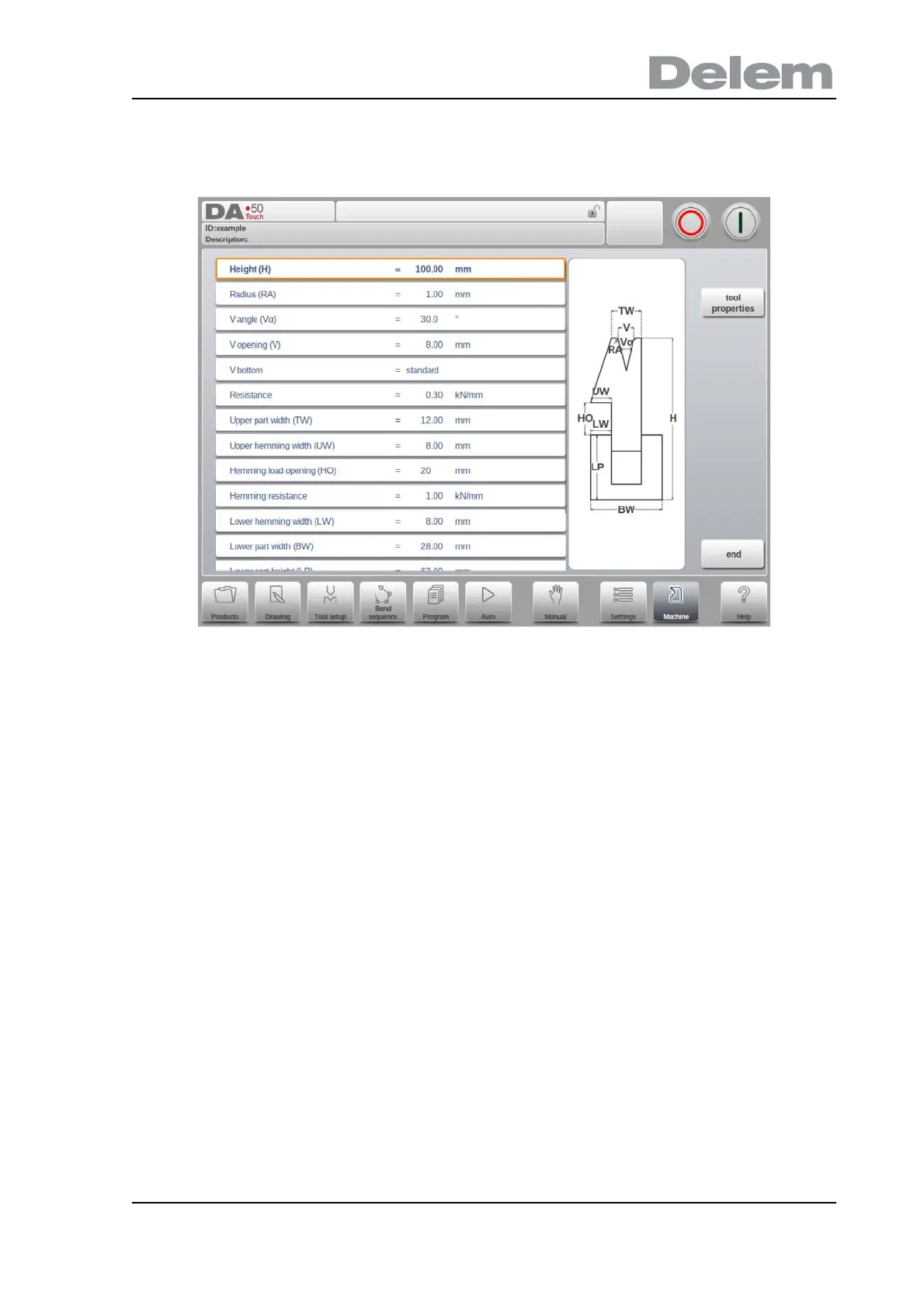

10.3.4. Inside hem bend die
Height
The total height of the tool. Important: this height value will be used in the bend depth
calculation.
Radius
The radius of the edges of the V-opening.
V angle
The angle of the die.
V opening
The V-opening of the die.
V bottom
Herewith the different possible bottoms inside the V opening can be defined:
• 'Standard' is a sharp angle in the bottom of the die.
• 'Round' is a die bottom with a radius to be programmed with the parameter 'Inside
radius'.
• 'Flat' is a flat die bottom with a certain dimension to be set with the parameter
'Bottom width'.
Resistance
Maximum allowable force on the tool.
Upper part width
The width of the upper part of the die.
