Delem DA-58T - Standard die

V0215, 10.14

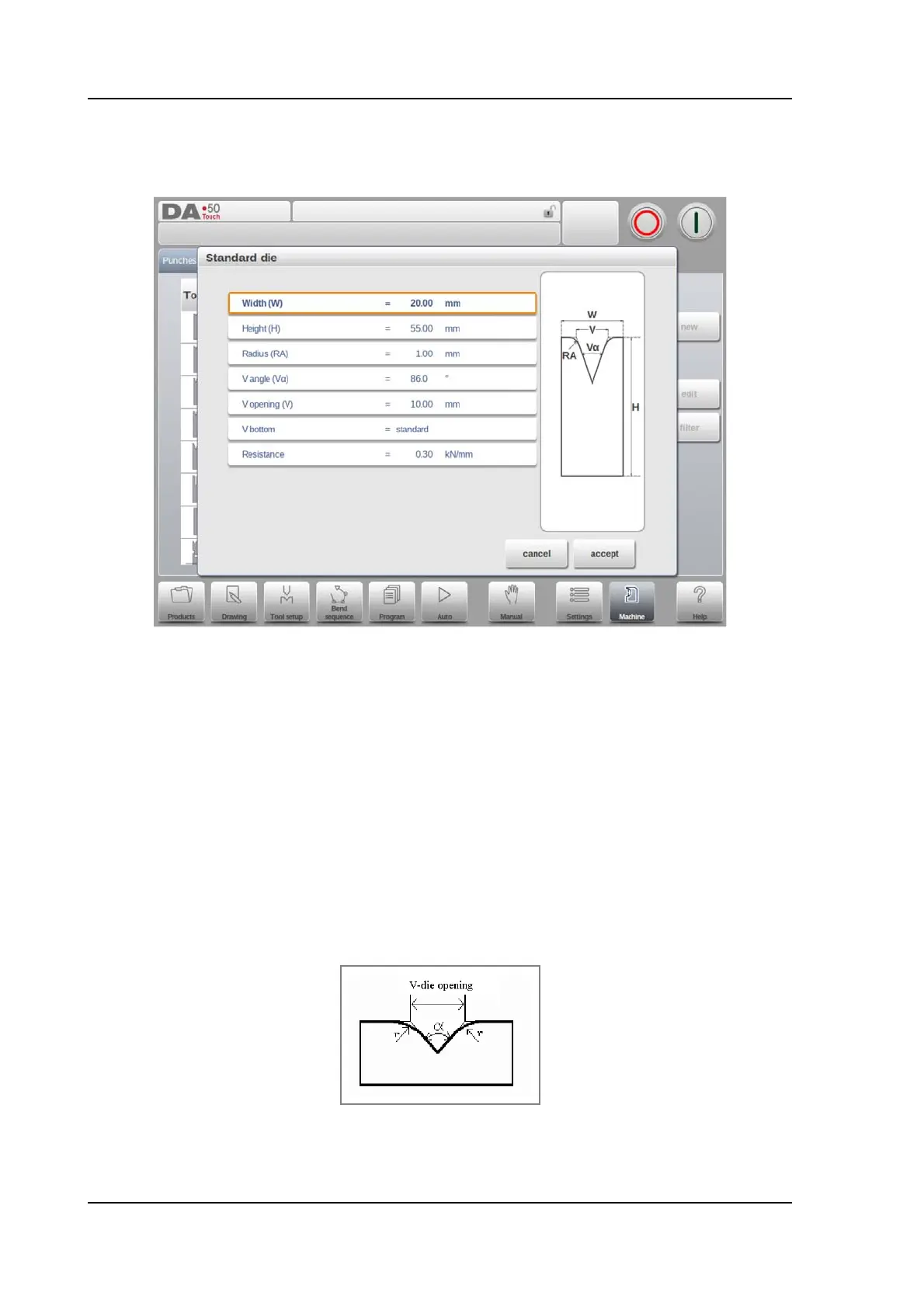

10.3.2. Standard die
Width
The width of the tool to program.
Height
The total height of the tool. Important: this height value will be used in the bend depth
calculation.
Radius
The radius of the edges of the V-opening.
V angle
The angle of the die.
V opening
The V-opening of the die.
The width V is the distance between the touching lines crossing.
