V0215, 10.15
V bottom
Herewith the different possible bottoms inside the V opening can be defined:
• Standard is a sharp angle in the bottom of the die.
• Round is a die bottom with a radius to be programmed with the parameter 'Inside
radius'.
• Flat is a flat die bottom with a certain dimension to be set with the parameter
'Bottom width'.
Resistance
Maximum allowable force on the tool.
Drawing orientation of the die on the screen
The right hand side of the tool is the back gauge side. The mid-position of the V-opening will
be placed on the centre line of the press brake shape.

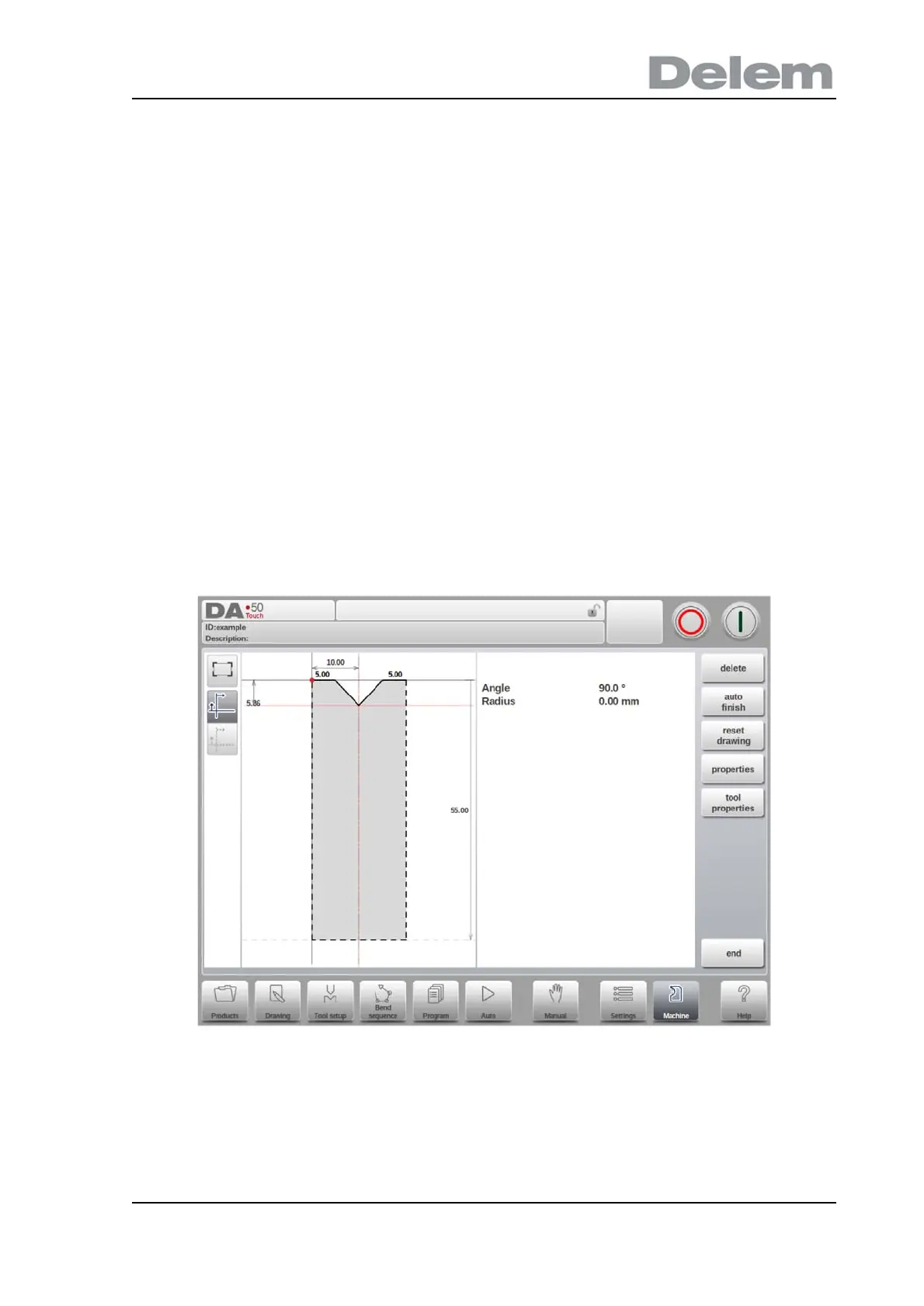

Drawing
After entering these typical values you can create the tool drawing with the drawing facilities.
Drawing a tool profile is done by entering angle values and line length values. Also the Touch
drawing tools are available as with the product drawing method.
Following functions are available while drawing
Delete Line
To delete a line segment.
Change Height
