10.3.1. Create a new die

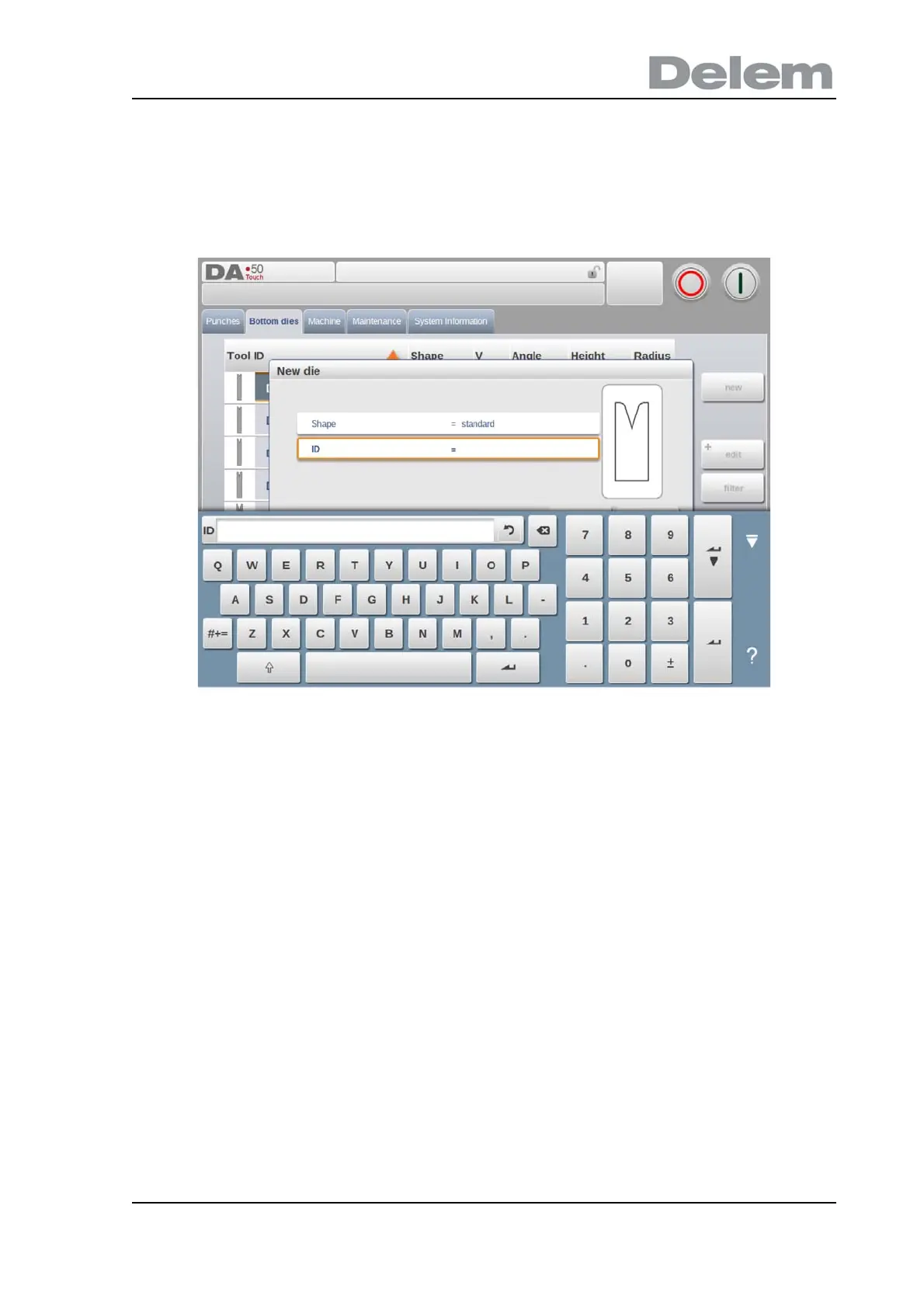

To create a new tool, tap News in the die library. The control will start by asking for the
required tool shape and tool identification name (ID).
Shape
A selection must be done from the different available basic die shapes corresponding to
the required die action. Options are:
• Standard Die shape as normally used for air bending and basic bottoming.
• Hem Bend Die as typical tool with flat top for specific hem bends.
• Inside Hem Bend Die as tool for air bends and hem function.
• Air + Hem Bend U Die shape for air bends and specific hem function.
ID
A unique name or number to identify the tool. The maximum length is 25 characters.
The ID and description parameters may also contain alphanumeric characters.
When finished, Accept to leave this window and start with the tool data parameters. The
control will start by prompting a pop-up window for the tool properties starting with the initial
dimensions of the tool.
To Next Page
