V0215, 8.7

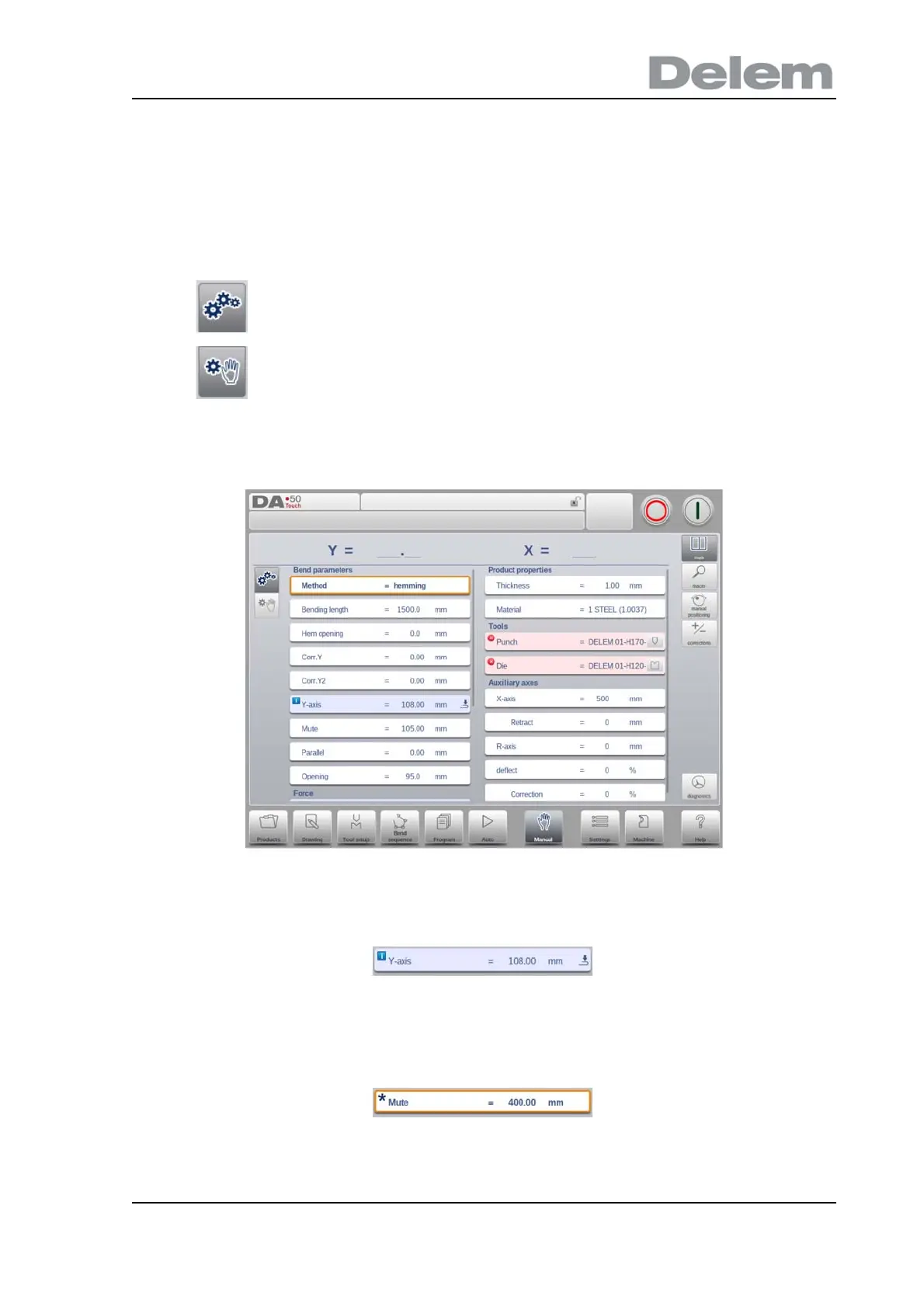

8.2. Programming parameters & Views
Parameters in manual mode can be programmed one by one. The effect of the parameter on
other parameters can be computed either automatically or manually. This depends on the
selected mode on the left-hand side of the screen. The Auto Computation switch enable to
select between:
The relation between parameters is visualized with a symbol and a background color.
When an information symbol is shown with parameters after an editted value, this parameters
was changed due to the last changed input.
A star symbol is shown with parameters if the value of the parameter differs from the
calculated value by the control. This can be helpfull if a value is intentionally programmed
different or if the value of a parameter is limited by the parameters limits.
A error symbol is shown with a parameters if the value cannot be correct according to the
currently programmed values. This, eg. when a hemming bend is programmed with no
Automatic, effect of parameters on other parameters is
automatically computed.
Manual, effect of parameters on other parameters is only effected by
over entering and accepting the proposed values.
