V0215, 10.23
edge and the X-axis position is outside the die safety zone.

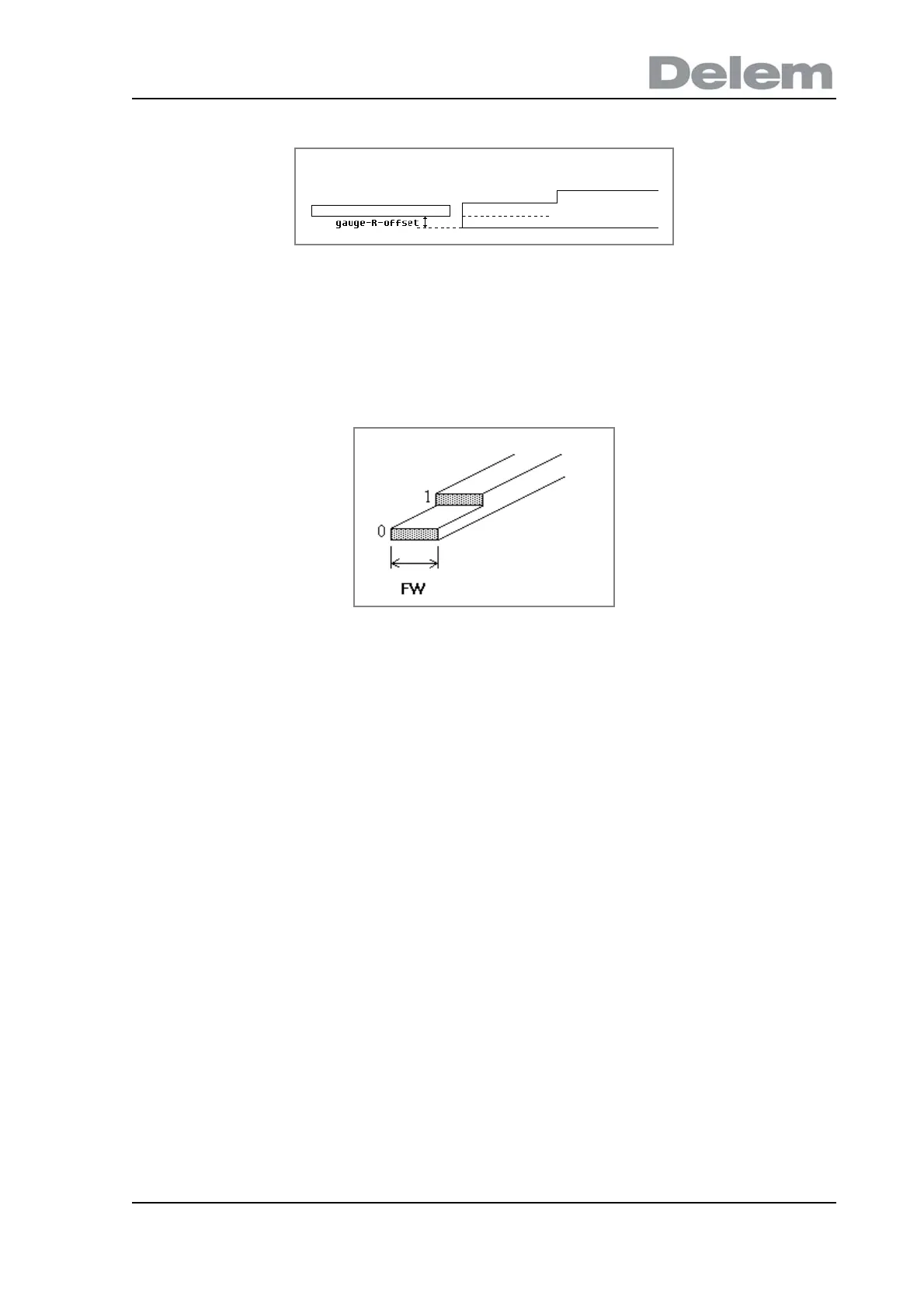

A negative value gives a lower backgauge position. This offset is only valid for gauge
position 0.
Finger width
The width of the backgauge finger. Only available when an automatic Z-axis has been
installed.
X position correction
When the actual, mechanical axis position is not corresponding with the displayed value
than is it possible to correct the position with this parameter. Program the calculated
difference.
Example:
- When the programmed and displayed value = 250 and the actual, mechanical position
value = 252 the CX parameter = -2.
- When the programmed and displayed value = 250 and the actual, mechanical position
value = 248 the CX parameter = +2.
In case there are several X-axes installed, a separate parameter is available for each X-
axis.
