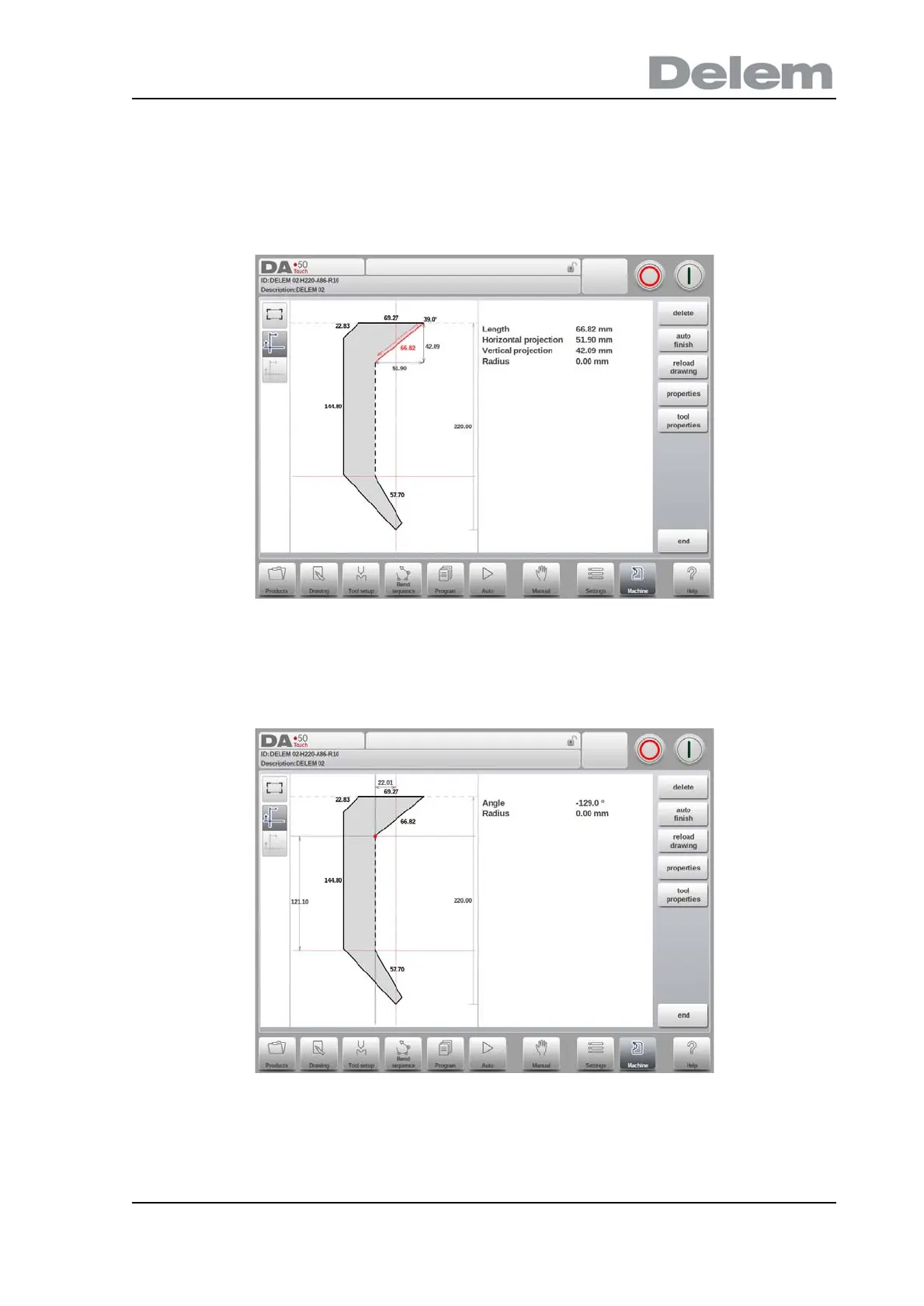

• A line has length as well as projection dimensions. These, along with its angle, can be
used programming the desired line. The control will help in this by trying to accept your
last input and adjusting the necessary values around. This is very helpful since drawings
might alter in what dimension information is given at each shape detail.
• Help lines are provided to measure inter point distances and also enable to change the
point based on the desired distance. When selecting a point, help lines appear. When
you move help lines to reference your desired value, just change the dimension and the
point will move where you need it.
