Dell D30M User Manual

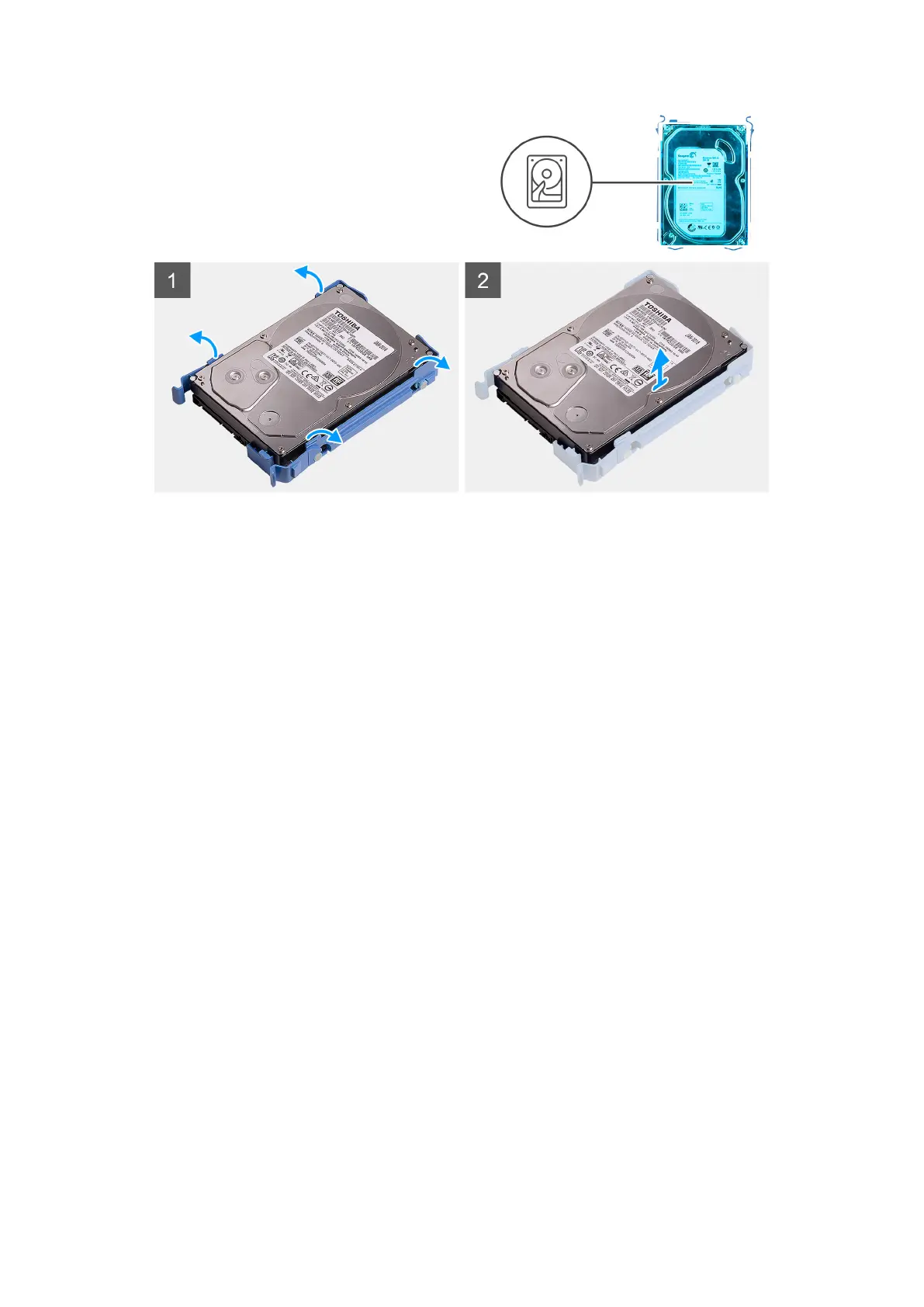

Figure 18. Removing the 3.5-inch hard-disk drive bracket
Steps
1. Pry both sides of the hard drive bracket edge to release the tabs on the bracket from the slots on the hard drive.
2. Lift and remove the hard drive off the hard drive bracket.
Installing the 3.5-inch hard drive bracket
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
About this task
The following images indicate the location of the 3.5-inch hard drive bracket and provide a visual representation of the
installation procedure.
Removing and installing Customer Replaceable Units (CRUs)
47
