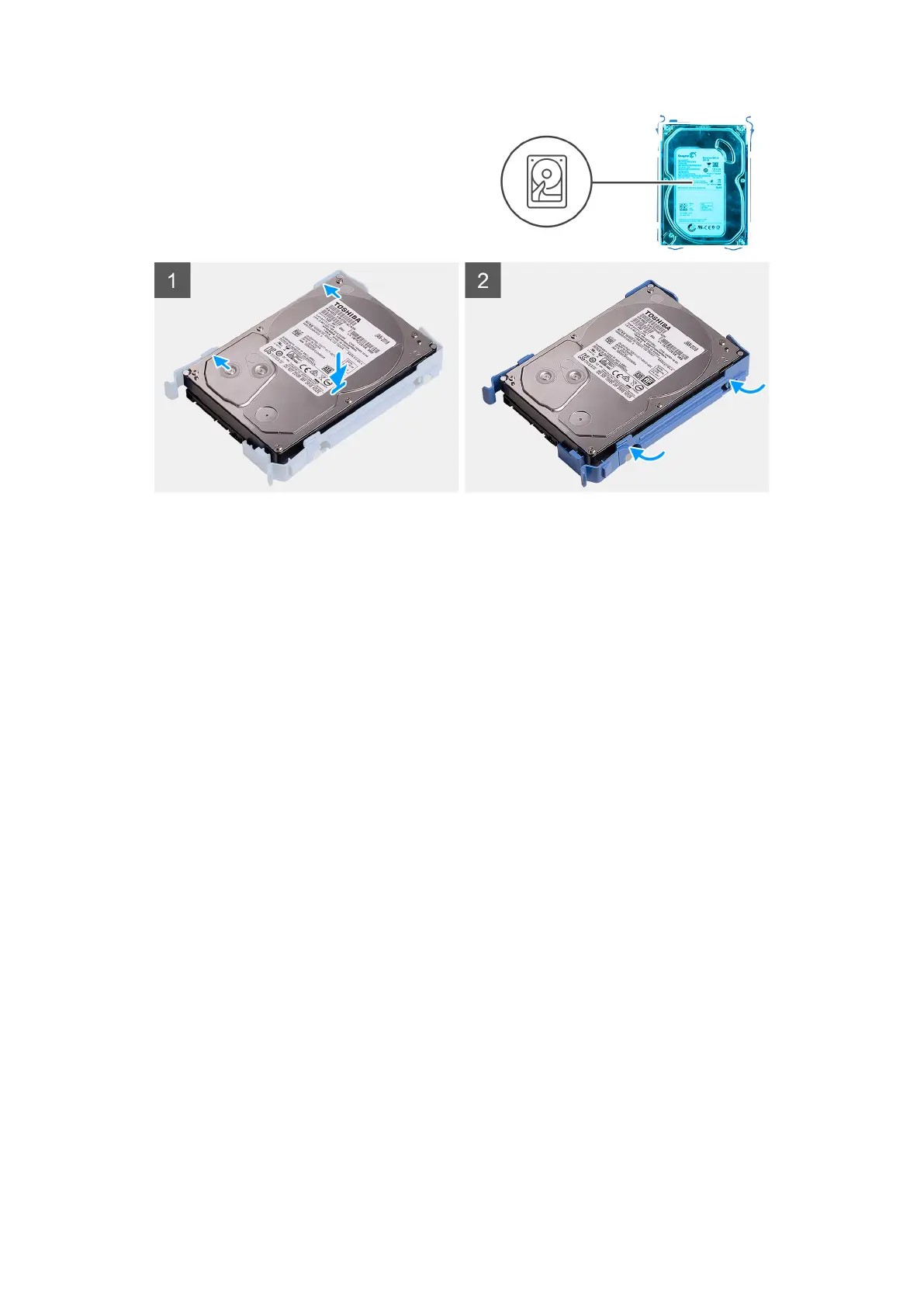

Figure 19. Installing the 3.5-inch hard drive bracket
Steps
1. Place the hard drive into the hard drive bracket and align the tabs on the bracket with the slots on the hard drive.
2. Snap the hard drive into the hard drive bracket.
Next steps
1. Install the 3.5-inch hard drive assembly (Bay-1).
2. Install the side cover.
3. Follow the procedure in after working inside your computer.
Installing the 3.5-inch hard drive assembly (Bay-2)
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
About this task
The following images indicate the location of the 3.5-inch hard drive assembly (Bay-2) and provide a visual representation of the
installation procedure.
