Installing the powered GPU
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
About this task
The following images indicate the location of the powered graphical processing unit and provide a visual representation of the
installation procedure.

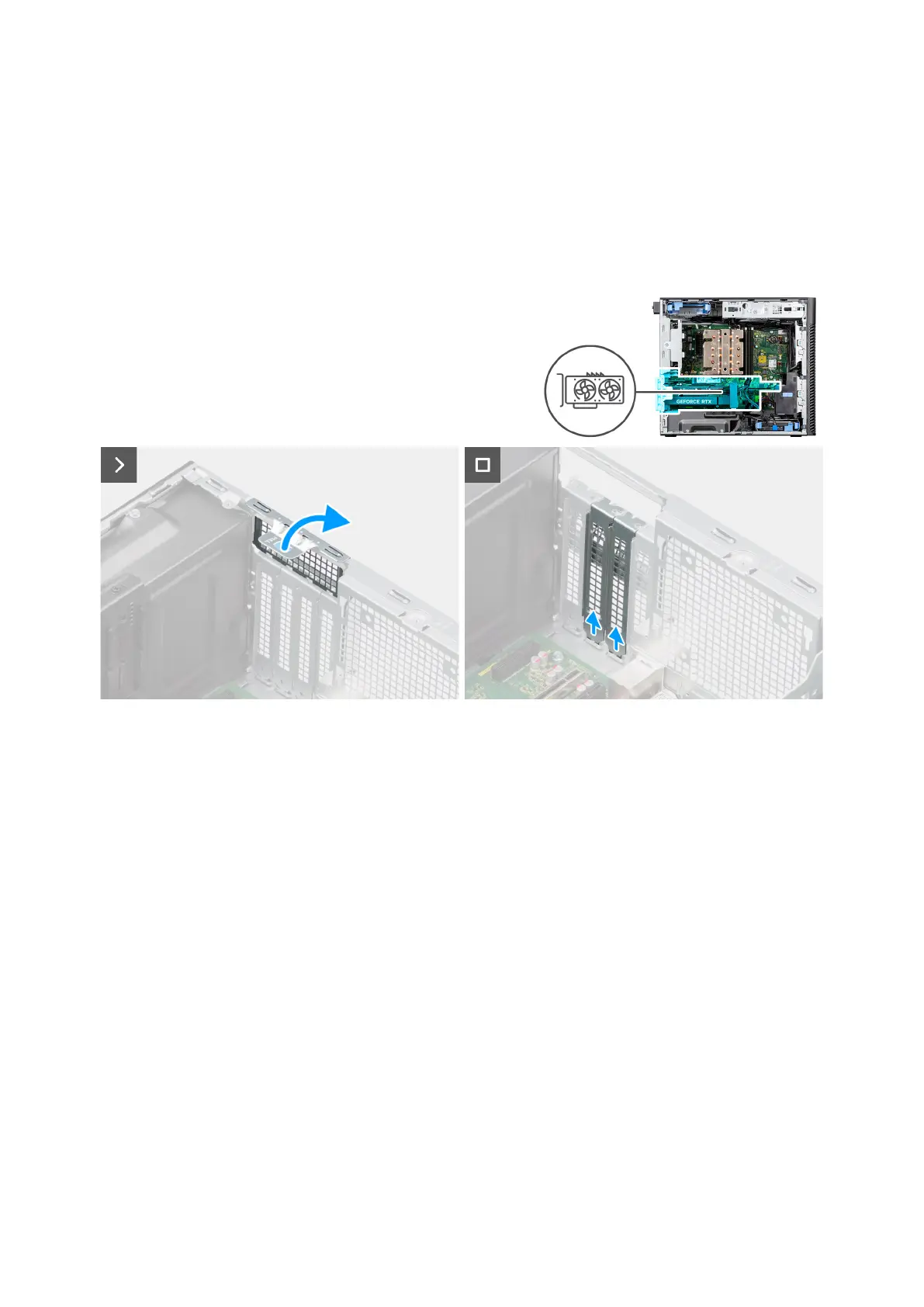

Figure 43. Installing the powered GPU
Removing and installing Customer Replaceable Units (CRUs)
71
