Installing the coin-cell battery
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
About this task

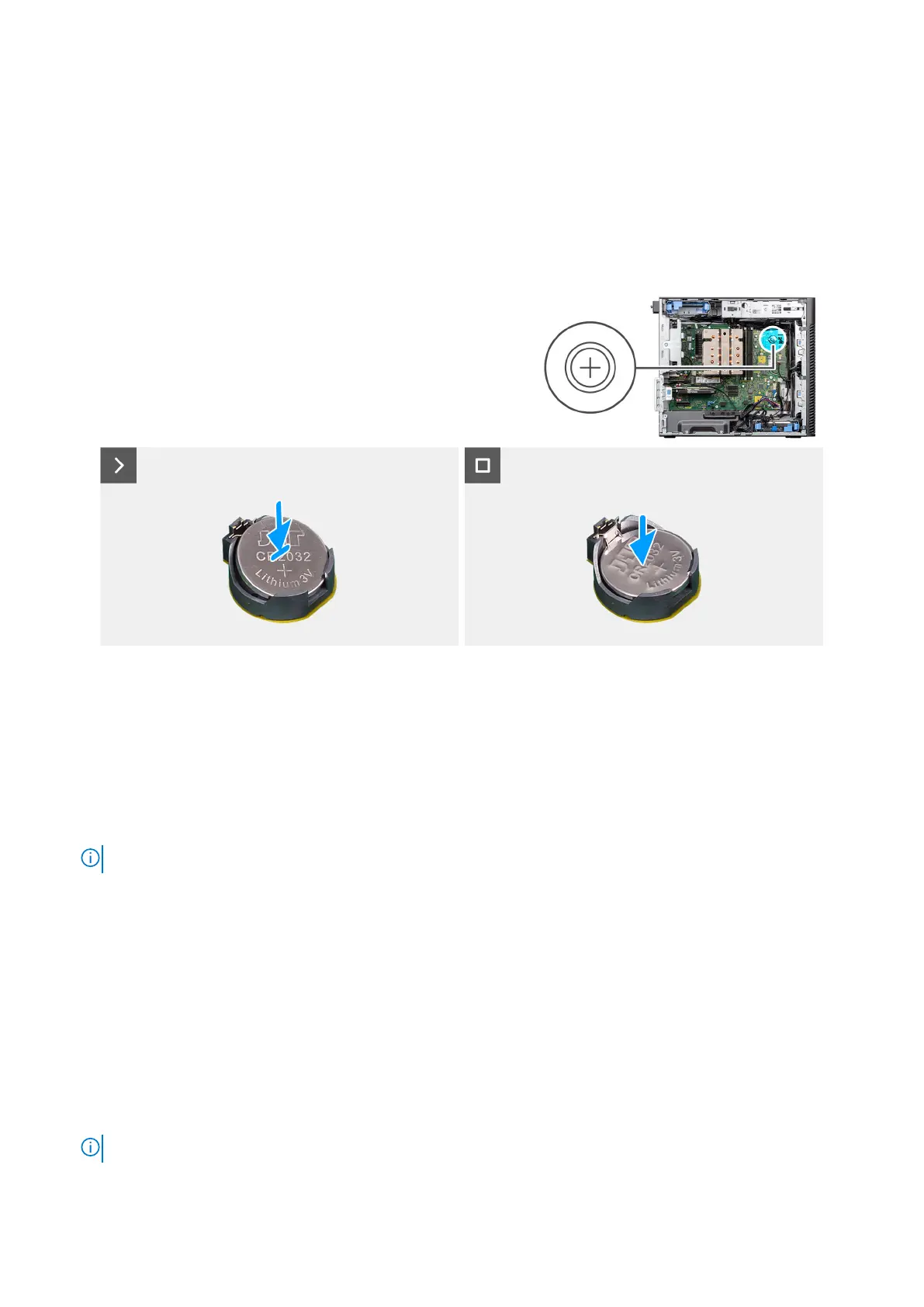

The following images indicate the location of the coin-cell battery and provide a visual representation of the installation
procedure.
Figure 31. Installing the coin-cell battery
Steps
1. Insert the coin-cell battery with the "+" sign facing up and slide it under the securing tabs at the positive side of the
connector.
2. Press the battery into the connector until it locks into place.
Next steps
1. Install the air shroud.
NOTE: For systems with 500W/1000W PSU only.
2. Install the side cover.
3. Follow the procedure in after working inside your computer.
Memory module
Removing the memory module
Prerequisites
1. Follow the procedure in before working inside your computer.
2. Remove the side cover.
3. Remove the air shroud.
NOTE: For systems with 500W/1000W PSU only.
60 Removing and installing Customer Replaceable Units (CRUs)
