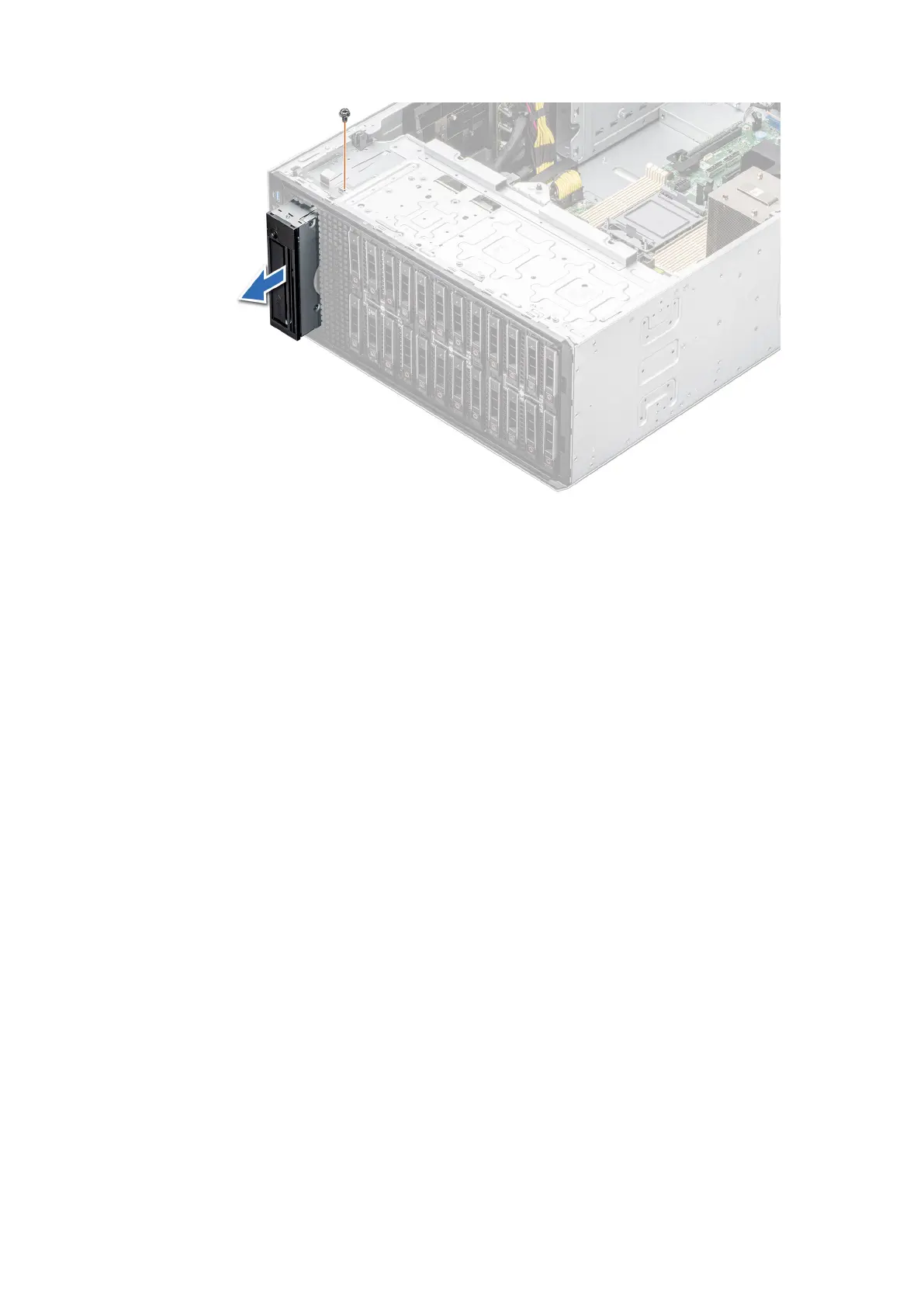

Figure 99. Removing the tape backup unit
Next steps
Replace the tape backup unit or install the tape backup unit blank.
Installing the tape backup unit
Prerequisites
1. Follow the safety guidelines listed in Safety instructions.
2. Follow the procedure that is listed in Before working inside your system.
3. Remove the air shroud.
4. If installed, remove the front bezel.
Steps
1. Align and slide the tape backup unit in the slot on the system.
2. Using a Phillips 2 screwdriver, secure the tape backup unit to the system.
104
Installing and removing system components
