Dell E76S - Installing a 2.5-Inch Drive into a 3.5-Inch Drive Adapter

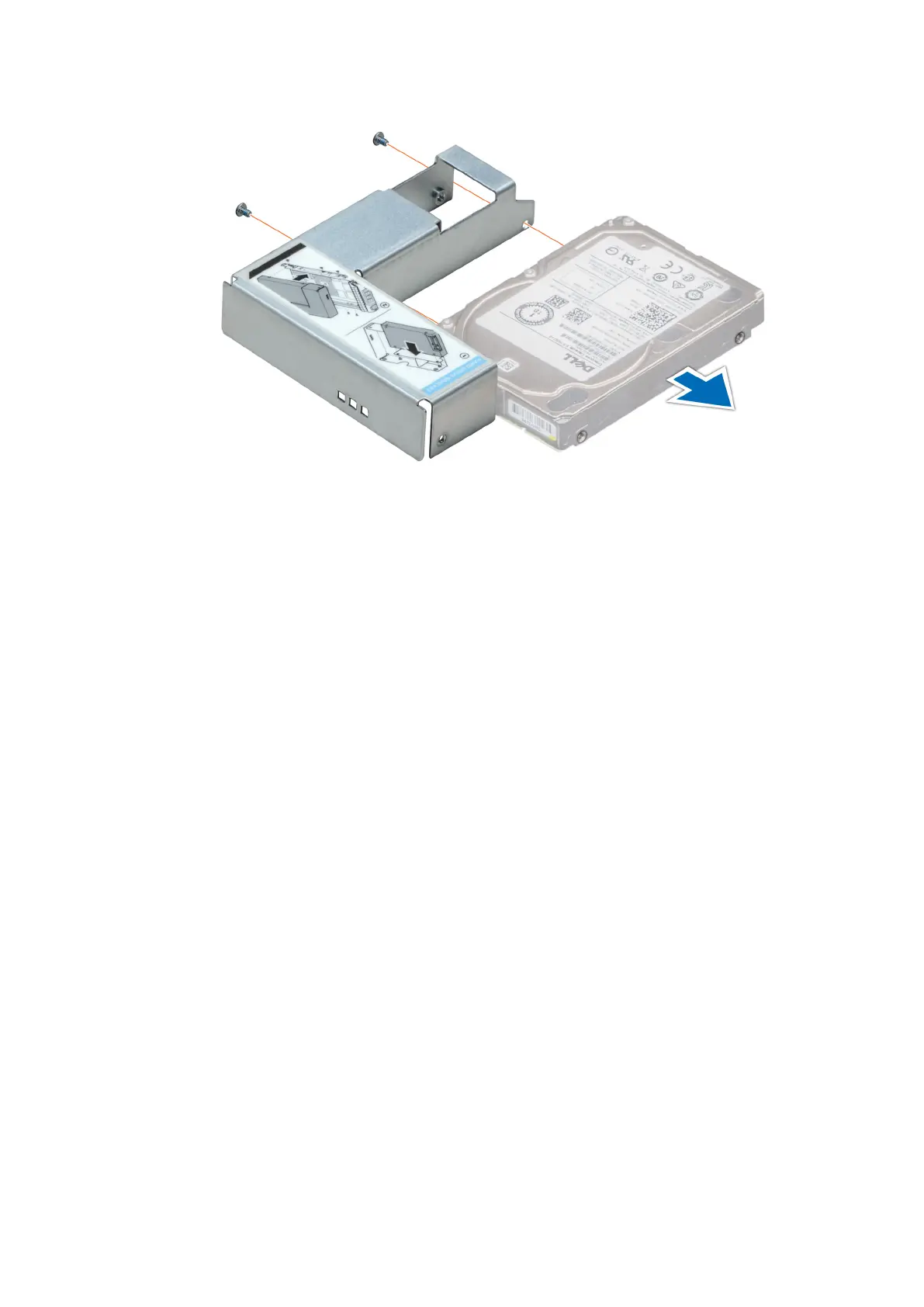

Figure 54. Removing a 2.5-inch drive from a 3.5-inch drive adapter
Next steps
Install a 2.5-inch drive into a 3.5-inch drive adapter.
Installing a 2.5-inch drive into a 3.5-inch drive adapter
Prerequisites
1. Follow the safety guidelines listed in Safety instructions.
2. Remove the 3.5-inch drive adapter from the 3.5-inch hot swappable drive carrier.
Steps
1. Align the screw holes on the 2.5-inch drive with the screw holes on the 3.5-inch drive adapter.
2. Using a Phillips 2 screwdriver, secure the 2.5-inch drive to the 3.5-inch drive adapter.
