Inside the system

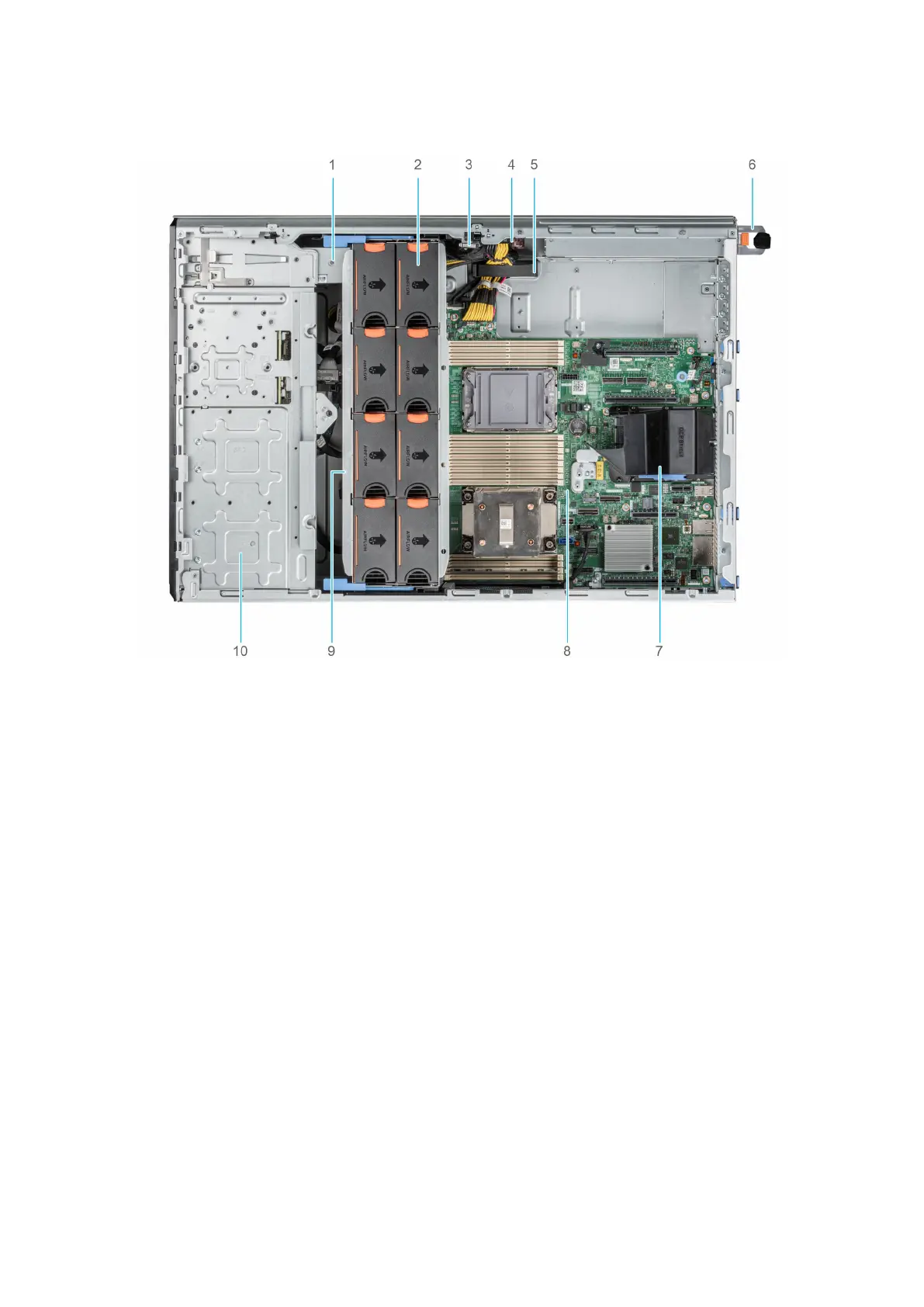

Figure 8. Inside the system for 24 x 2.5-inch configuration
1.
Tape backup unit 2. Cooling fan
3. Intrusion switch 4. Power interposer board
5. Cable retention clip 6. PSU 1
7. OCP air shroud 8. System board
9. Cooling fan cage 10. 2.5-inch drive bay
PowerEdge T550 system overview 21
