Dell E76S - Fan Board Tray; Fan Board View

Figure 38. Installing the cooling fan cage
Next steps
1. Install the air shroud.
2. Follow the procedure listed in After working inside your system.
Fan board tray
Fan board view

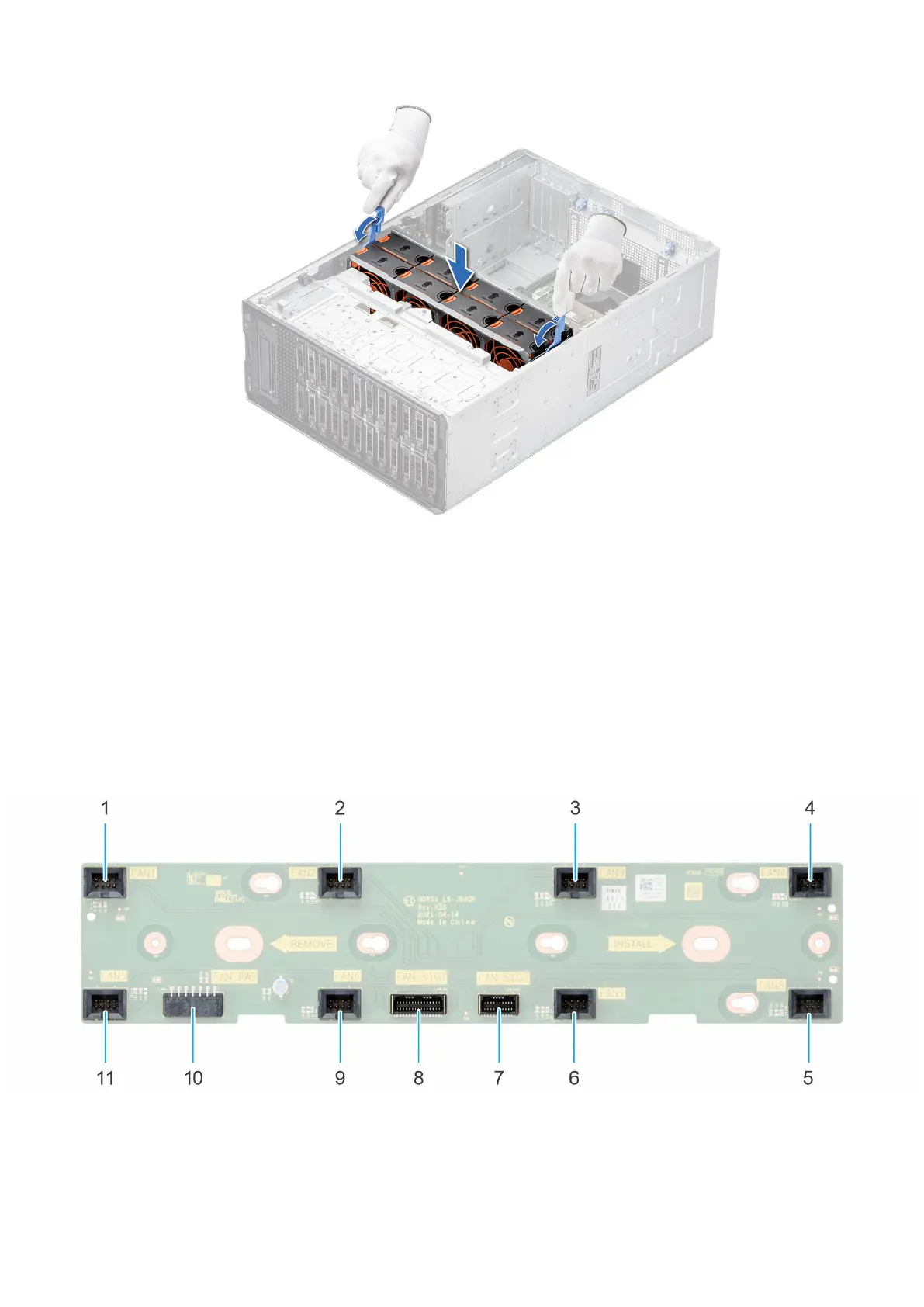

Figure 39. Fan board connectors
1.
FAN1 2. FAN2
3. FAN3 4. FAN4
5. FAN8 6. FAN7
50 Installing and removing system components
