Dell E76S - Installing the GPU Riser

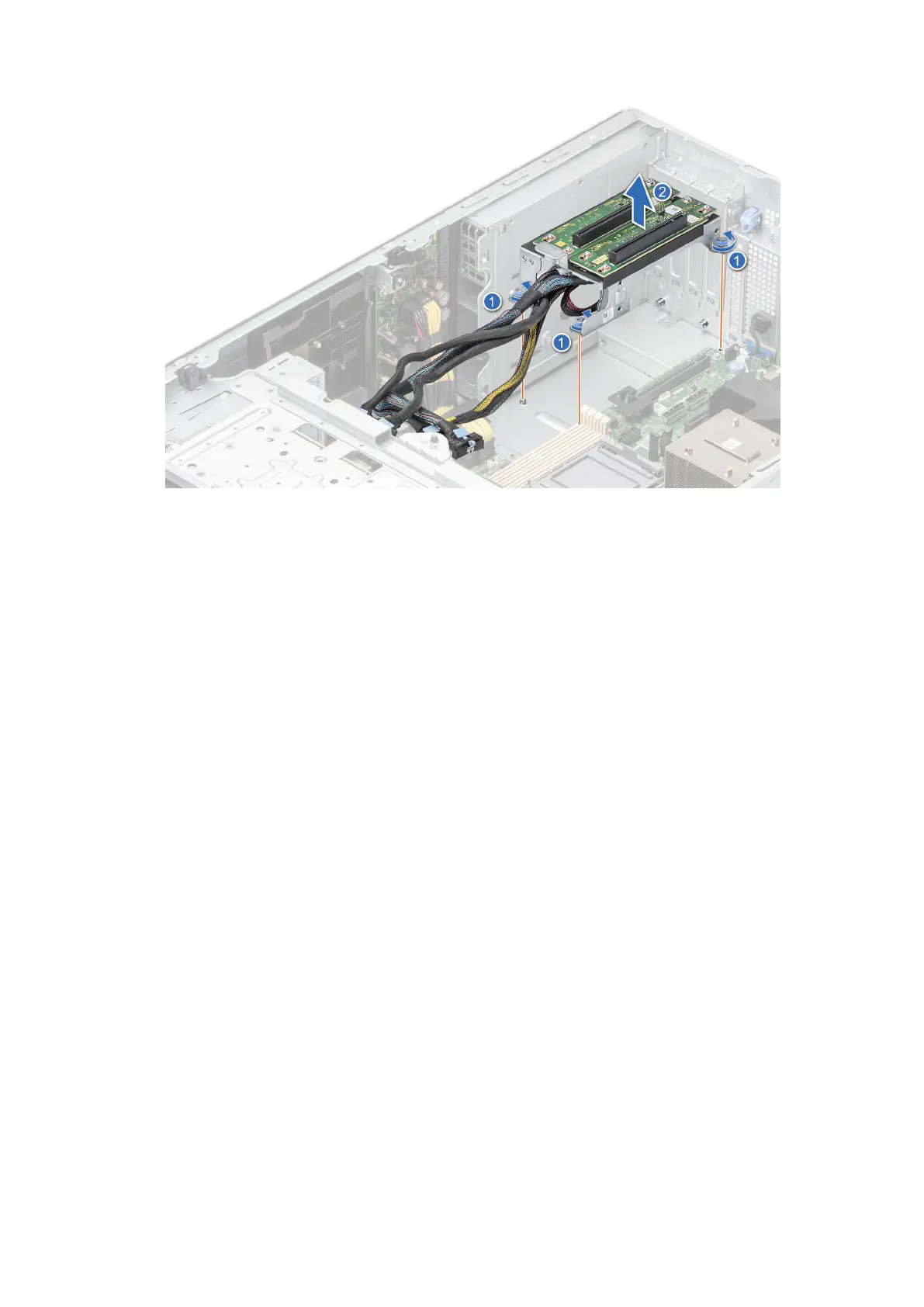

Figure 138. Removing the GPU riser
Next steps
Replace the GPU riser.
Installing the GPU riser
Prerequisites
1. Follow the safety guidelines listed in Safety instructions.
2. Follow the procedure that is listed in Before working inside your system.
3. Remove the air shroud.
Steps
1. Align the GPU riser to the guide pins and lower the GPU riser in the system.
2. Tighten the captive screws, until the GPU riser is firmly seated.
