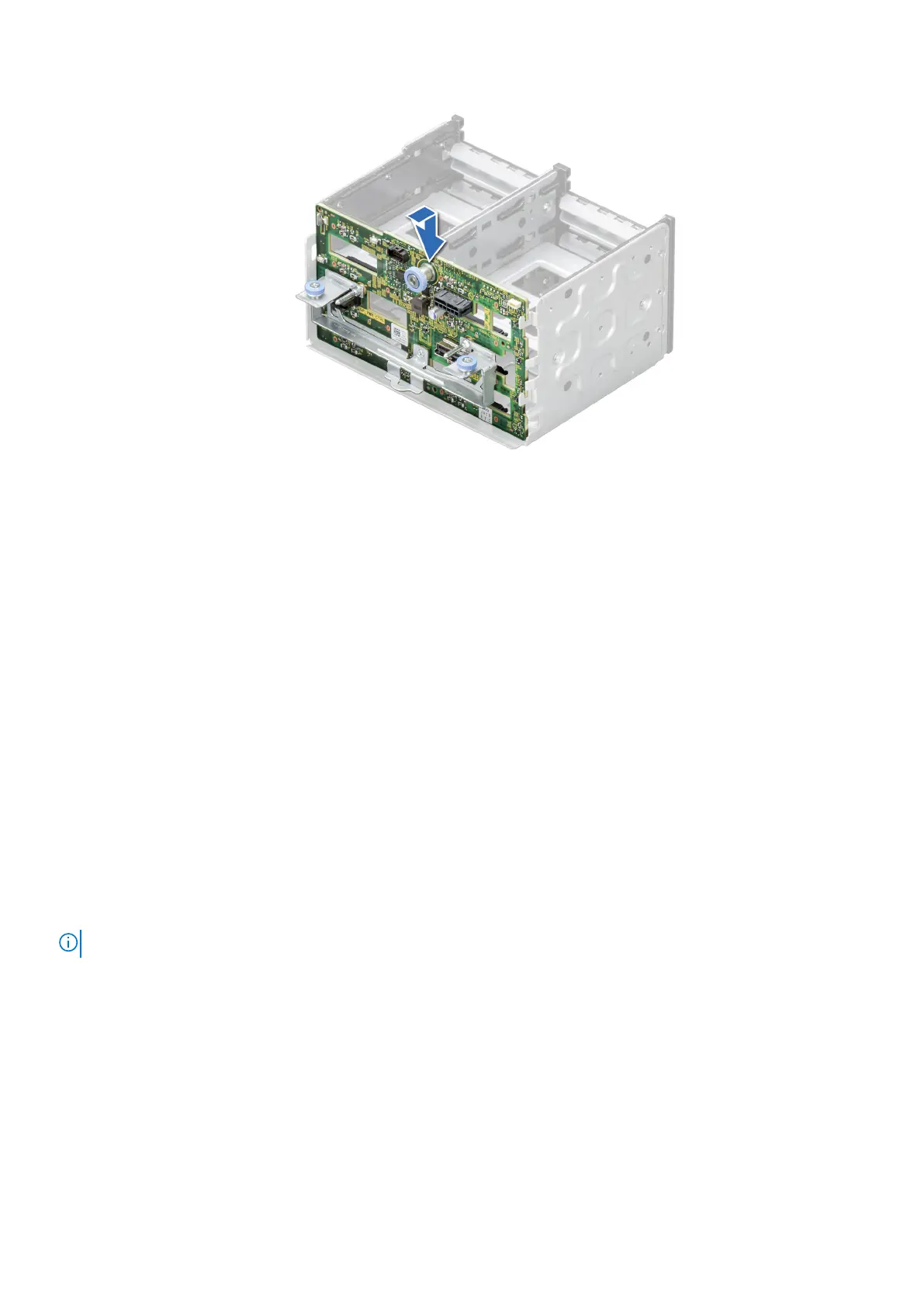

Figure 61. Installing the 2.5-inch drive backplane
Next steps
1. Install the drives.
2. Connect the drive backplane cables to the connector on the backplane.
3. Install the cooling fan cage.
4. Install the front PERC module.
5. Follow the procedure listed in After working inside your system.
Drive bays
Removing the drive bay cage blank
Prerequisites
1. Follow the safety guidelines listed in the Safety instructions.
2. If installed, remove the front bezel.
Steps
Using a flat head screwdriver, remove the drive bay cage blank.
NOTE: The procedure to remove the drive cage blanks are similar.
Installing and removing system components 69
