Power interposer board
This is a service technician replaceable part only.

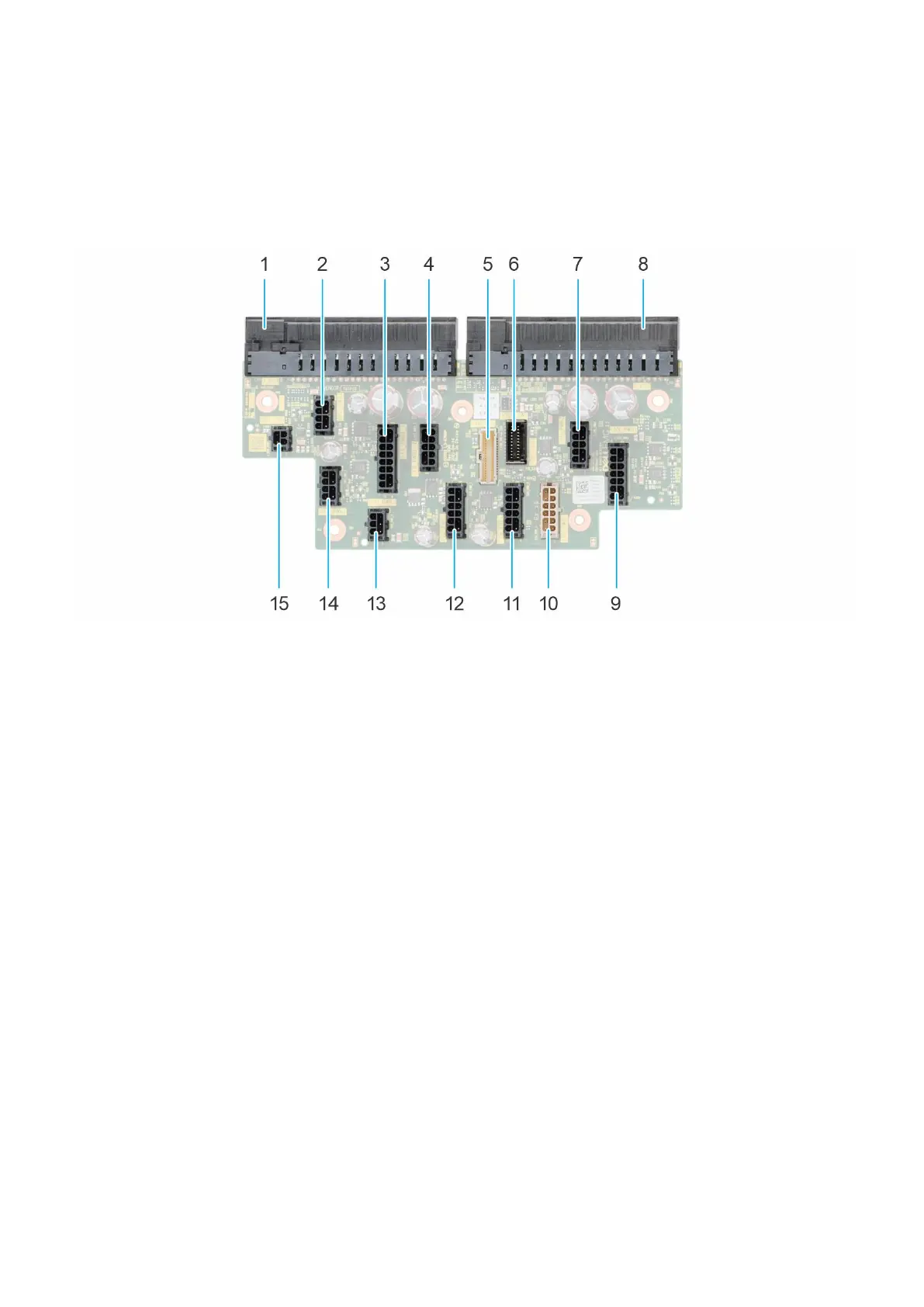

PIB board view
Figure 173. PIB connectors
1.
J_PS1 2. GPU_PWR1
3. SYS_PWR1_1 4. SYS_PWR1_2
5. PIB_SIG 6. PIB_SIG1
7. CPU_PWR2 8. J_PS2
9. FAN_PWR1 10. SIG_PWR_1
11. SIG_PWR_2 12. SIG_PWR_3
13. GPU_PWR_3 14. GPU_PWR_2
15. ODD_PWR
Removing the power interposer board
Prerequisites
1. Follow the safety guidelines listed in Safety instructions.
2. Follow the procedure that is listed in Before working inside your system.
3. Remove the air shroud.
4. Remove the PSU.
Steps
1. Disconnect all the power cables from the PIB.
2. Using the Phillips 2 screwdriver, remove the screws that secure the PIB to the system.
3. Lift the PIB out of the system.
162
Installing and removing system components
