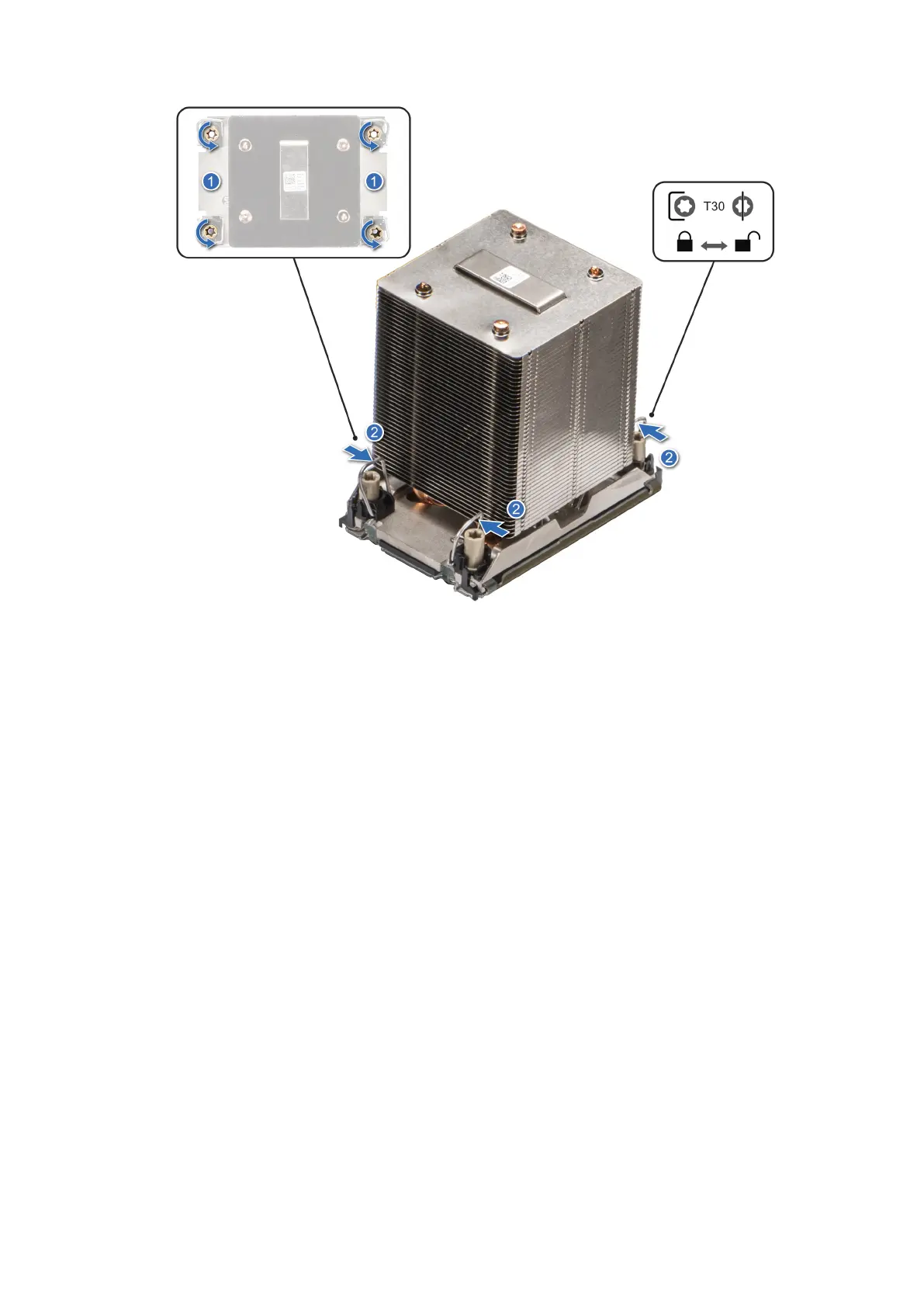

Figure 140. Removing the processor heat sink module
3. Lift the PHM from the system and set the PHM aside with the processor side facing up.
138
Installing and removing system components
