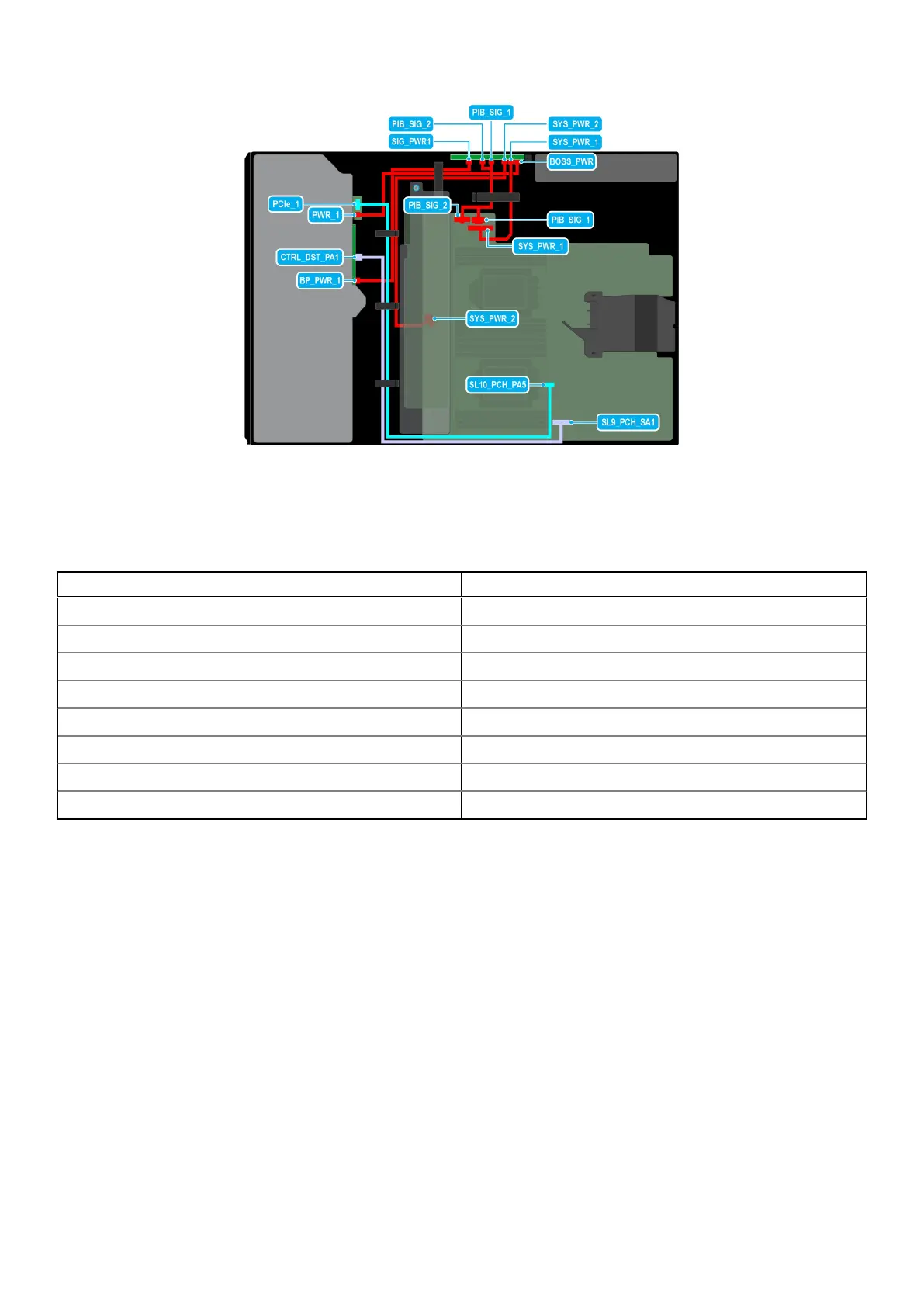

Figure 75. Cable routing - 8 x 2.5-inch SATA with BOSS S2 module
Table 18. Cable routing - 8 x 2.5-inch SATA with BOSS S2 module
From To
PCIe_1 (Signal connector on BOSS S2 module) SL10_PCH_PA5 (Signal connector on system board)
PWR_1 (Power connector on BOSS S2 module) BOSS_PWR (Power connector on PIB)
BP_DST_SA1 (Signal connector on backplane) SL9_PCH_SA1 (Signal connector on system board)
BP_PWR_1 (Power connector on backplane) SIG_PWR_1 (Power connector on PIB)
SYS_PWR_1 (Power connector on system board) SYS_PWR_1 (Power connector on PIB)
SYS_PWR_2 (Power connector on system board) SYS_PWR_2 (Power connector on PIB)
PIB_SIG_1 (Power connector on system board) PIB_SIG_1 (Power connector on PIB)
PIB_SIG_2 (Power connector on system board) PIB_SIG_2 (Power connector on PIB)
80 Installing and removing system components
