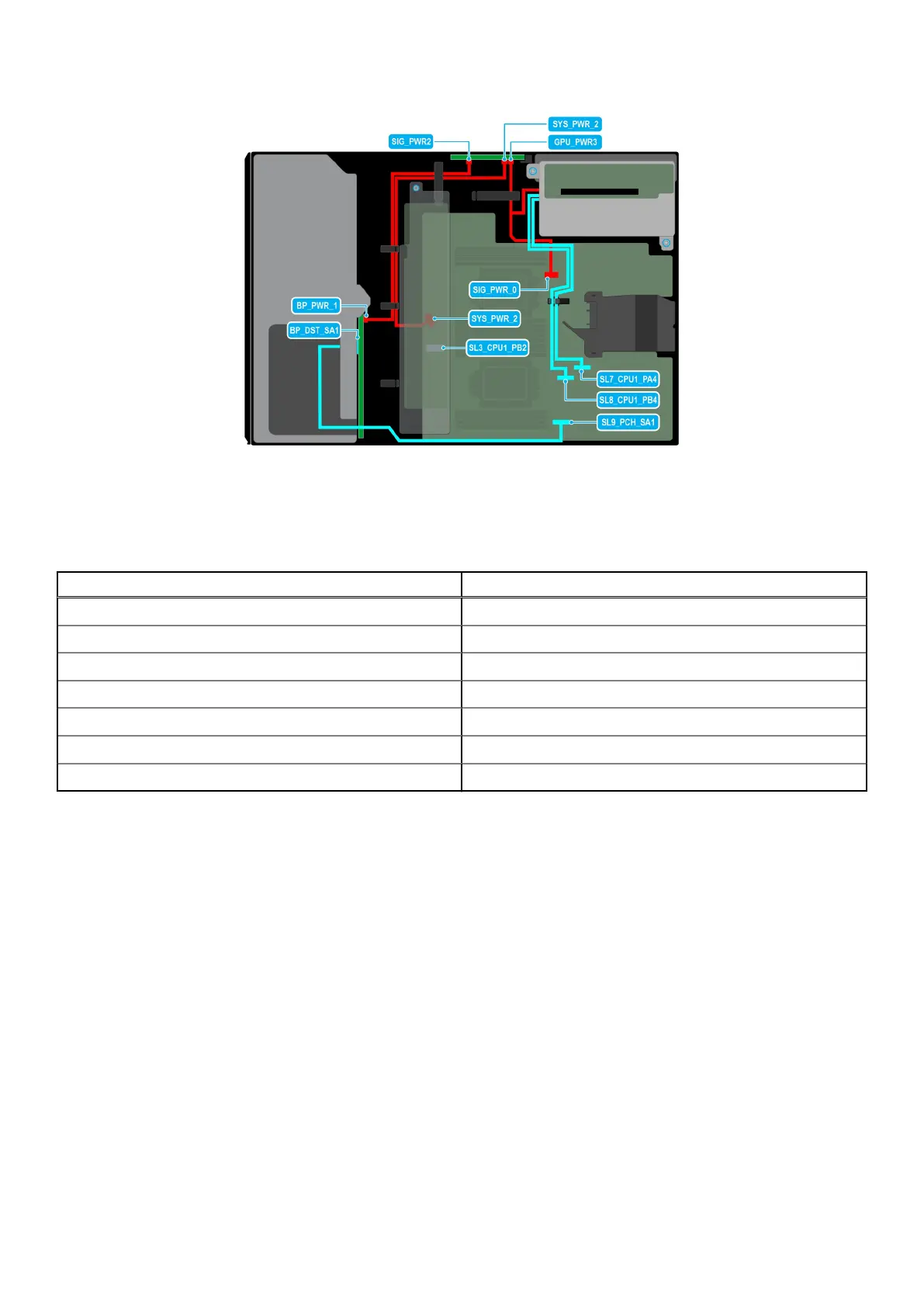

Figure 88. Cable routing - 8 x 3.5-inch SATA with GPU riser
Table 31. Cable routing - 8 x 3.5-inch SATA with GPU riser
From To
CTRL_DST_PA1 (Signal connector on backplane) SL9_PCH_SA1 (Signal connector on system board)
BP_PWR_1 (Power connector on backplane) SIG_PWR_2 (Power connector on PIB)
SYS_PWR_2 (Power connector on system board) SYS_PWR_2 (Power connector on PIB)
SIG_PWR_0 (Power connector on system board) RISER_PWR_1 (Power connector on GPU riser)
GPU_PWR_3 (Power connector on PIB) RISER_PWR_1 (Power connector on GPU riser)
SL7_CPU1_PA4 (Signal connector on system board) RISER_DST_PA1 (Signal connector on GPU riser 1)
SL8_CPU1_PB4 (Signal connector on system board) RISER_DST_PB1 (Signal connector on GPU riser 1)
