If you are installing a card in an empty card connector on the system board, remove the filler bracket to
create a card-slot opening at the back of the computer. Then continue with step 6.
5
If you are installing a card to replace one already installed in the computer, remove the installed card
(see "Removing a PCI Card" on page 109).
6
Prepare the card for installation.
NOTE: See the documentation that came with the card for information on configuring the card, making
internal connections, or customizing it for your computer.

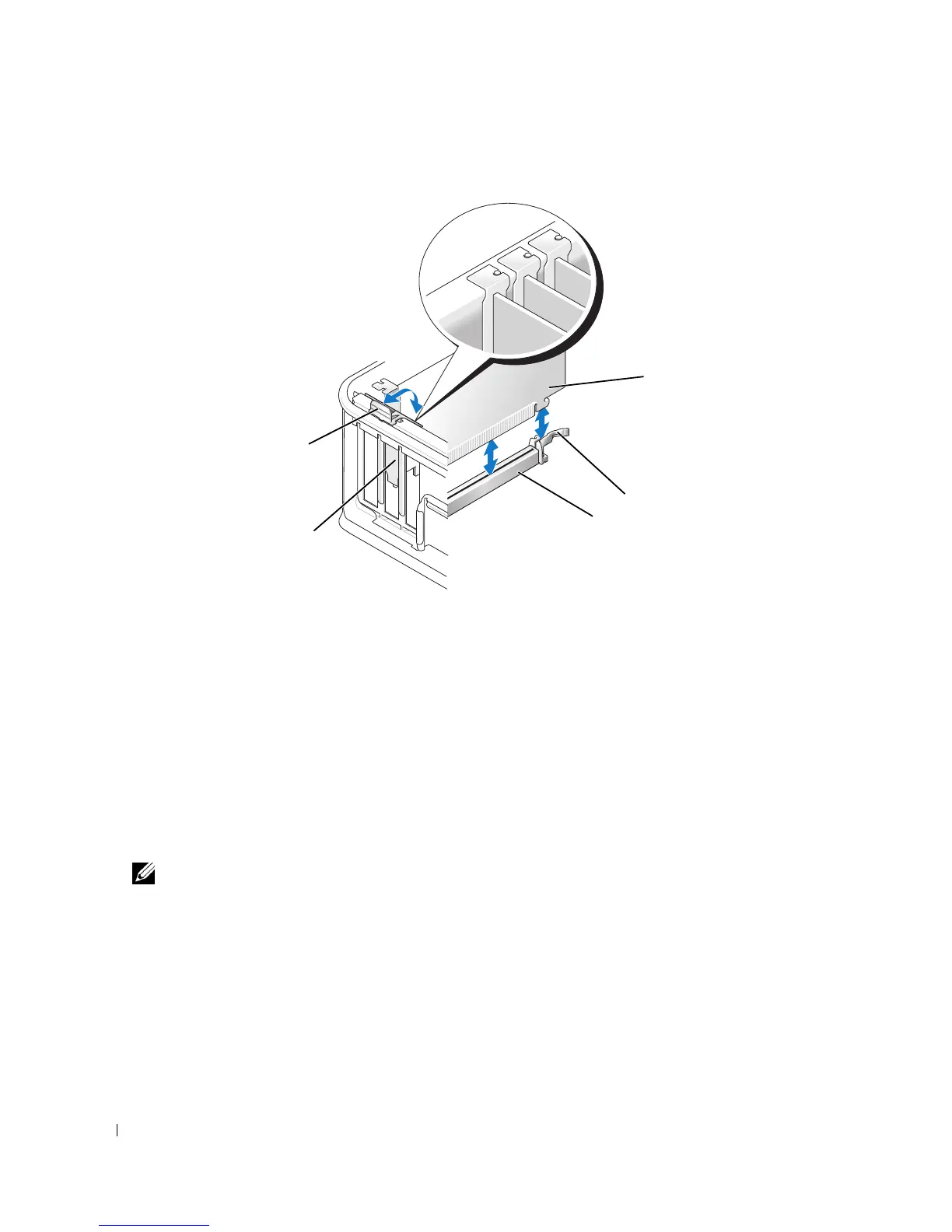

1 card 4 card insert
2 card-retention latch 5 release tab
3 system board
connector
5
2
3
1
4
