Power Supply 221

DC Power Connectors

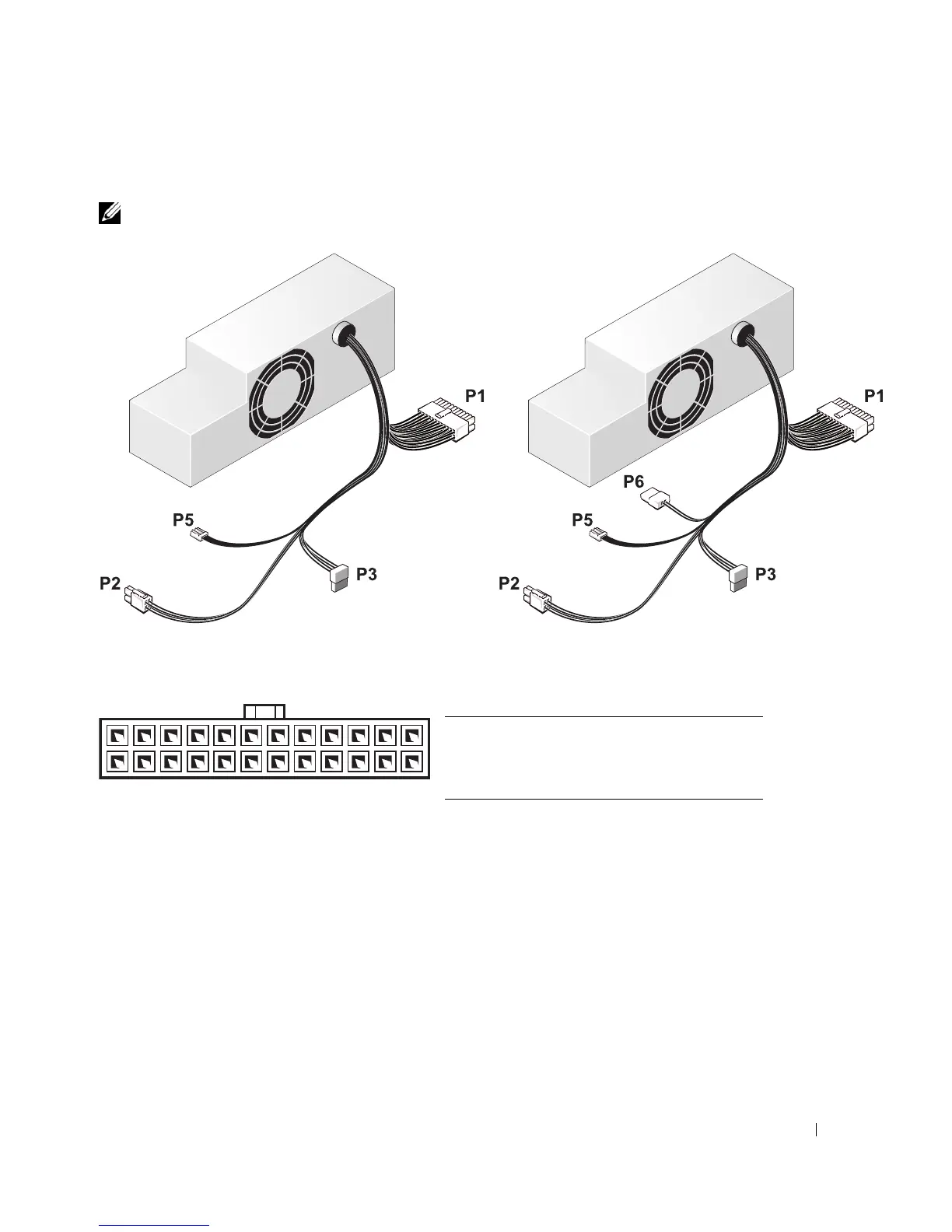

NOTE: The power supply installed in your computer is one of two options as illustrated below.

DC Power Connector P1

Pin

Number

Signal Name 18-

AWG

Wire

1 +3.3 VDC Orange

2 +3.3 VDC Orange

3GND Black

4 VCC (+5 V) Red

5GND Black

6 VCC (+5 V) Red

13 14 15 16 17 18 19 20 21 22 23 24

123456789101112
