Dell OptiPlex 755 - System Board Components

32 Mini Tower Computer

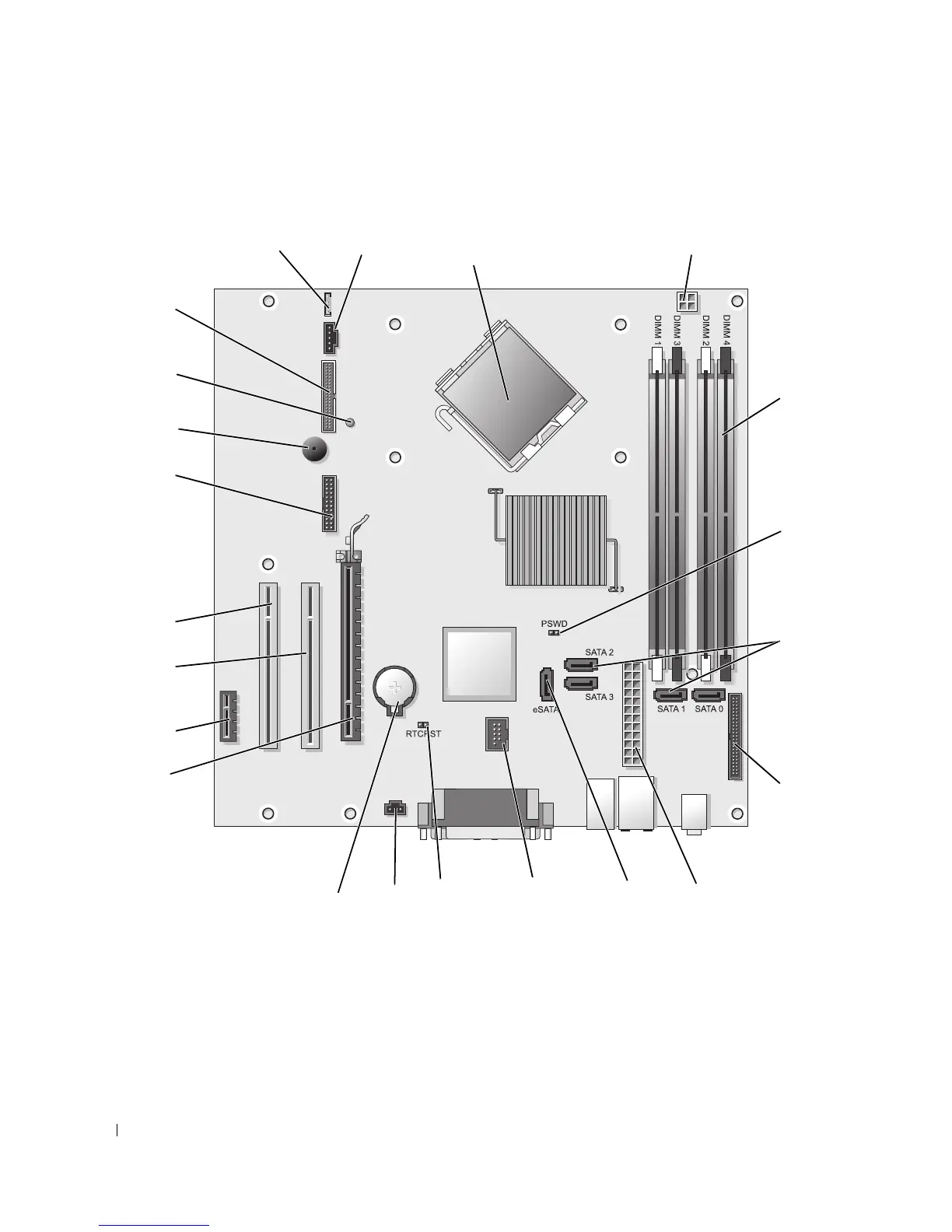

System Board Components
1 speaker connector (INT_SPKR) 12 RTC reset jumper (RTCRST)
2 fan (FAN_CPU) 13 intrusion switch connector (INTRUDER)
3 processor connector (CPU) 14 battery socket (BATTERY)
4 processor power connector (12VPOWER) 15 PCI Express x16 connector (SLOT1)
5 memory module connectors (DIMM_1,
DIMM_2, DIMM_3, DIMM_4)
16 PCI Express x1 connector (SLOT4)
