224 Power Supply

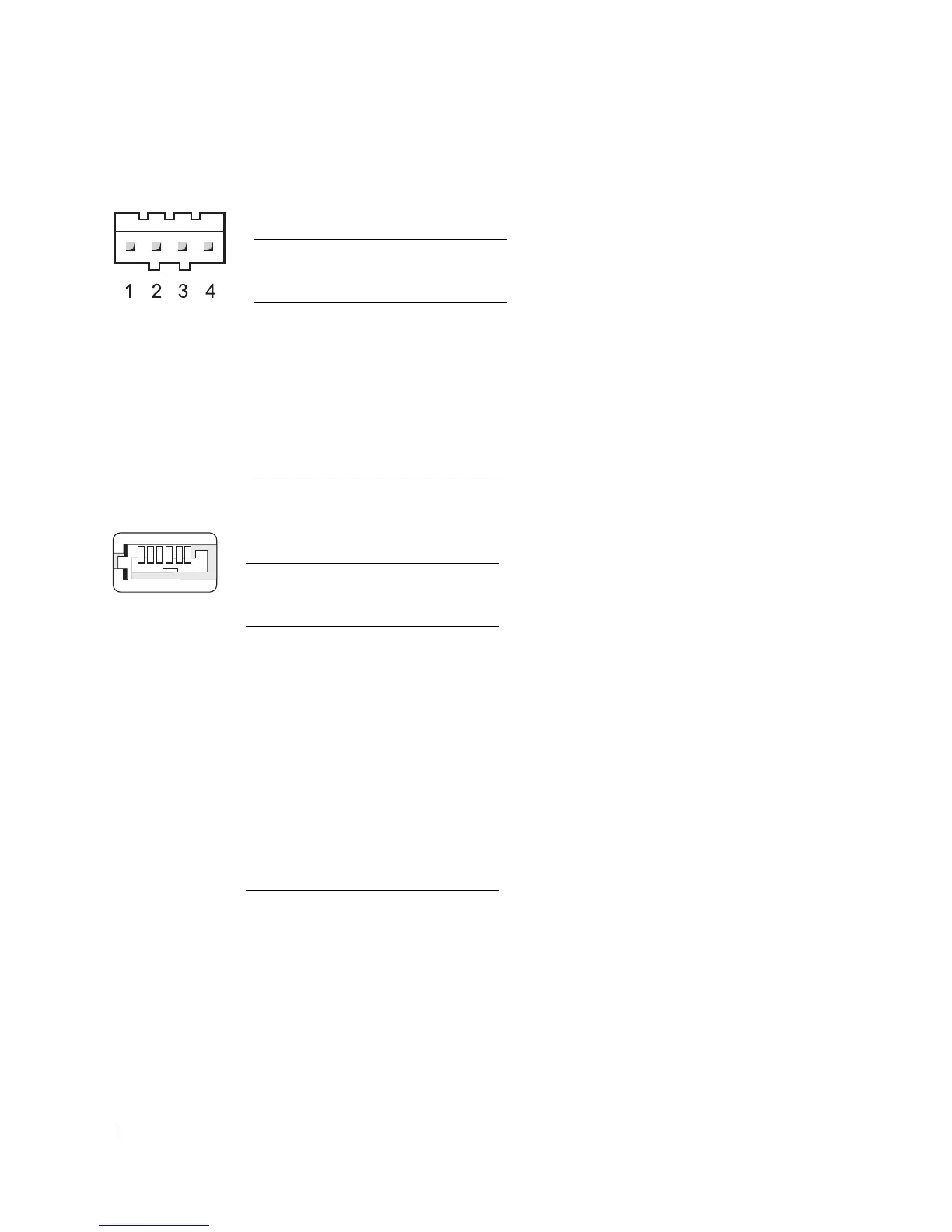

DC Power Connector P5

DC Power Connector P6

Pin

Number

Signal

Name

24-AWG

Wire

1GNDBlack

2+5 VDCRed

3NA NA

4 +3.3 VDC Orange

Pin

Number

Signal

Name

24-AWG

Wire

1NCNC

2+5 VDCRed

3+5 VDCRed

4NCNC

5GNDBlack

6GNDBlack

6 5 4 3 2 1
