118 Expansion Cards
8
Connect the adapter cable to the PS/2 serial port adapter connector (SERIAL2) on the system board
(see "System Board Components" on page 95).
NOTE: See the documentation for the PS/2 serial port adapter for information about the cable connections.
9
Replace the computer cover (see "Replacing the Computer Cover" on page 317).
Removing a PS/2 Serial Port Adapter
1
Follow the procedures in "Before You Begin" on page 21.
2
Remove the computer cover (see "Removing the Computer Cover" on page 90).
3
Gently lift the release tab on the card retention latch from the inside to pivot the latch open. Pivot the
latch until it snaps into the open position.

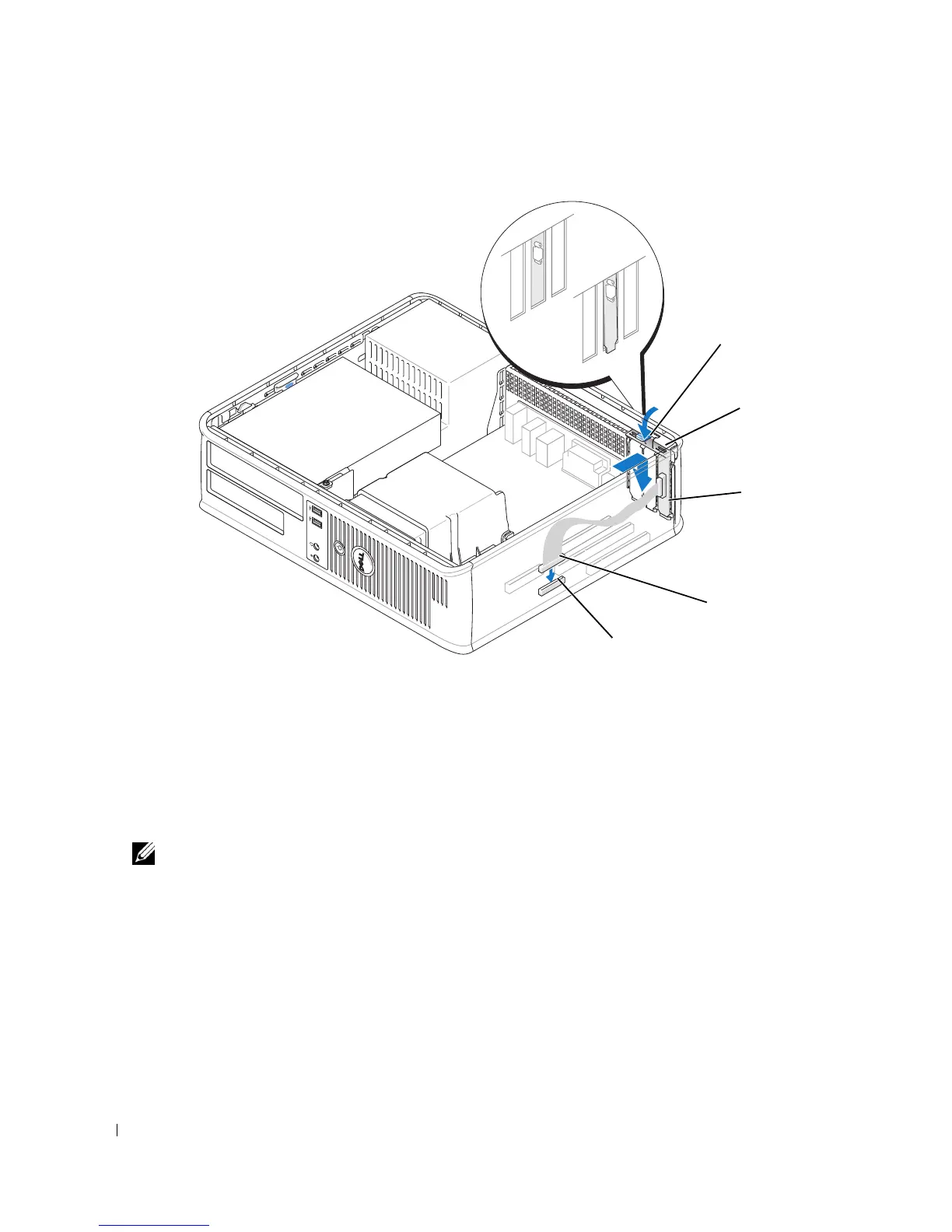

1 release tab 2 adapter retention latch 3 PS/2 serial-port adapter
bracket
4 serial port adapter connector 5 serial port adapter system
board connector (SERIAL2)
2
4
5
3
1
