124 Expansion Cards
5
Replace the computer cover (see "Replacing the Computer Cover" on page 317).
6
Boot your computer and enter system setup (see "Entering System Setup" on page 280). Use the
esata
option to enable the eSATA drive.
Installing eSATA With a Riser
1
Remove the computer cover (see "Removing the Computer Cover" on page 27).
2

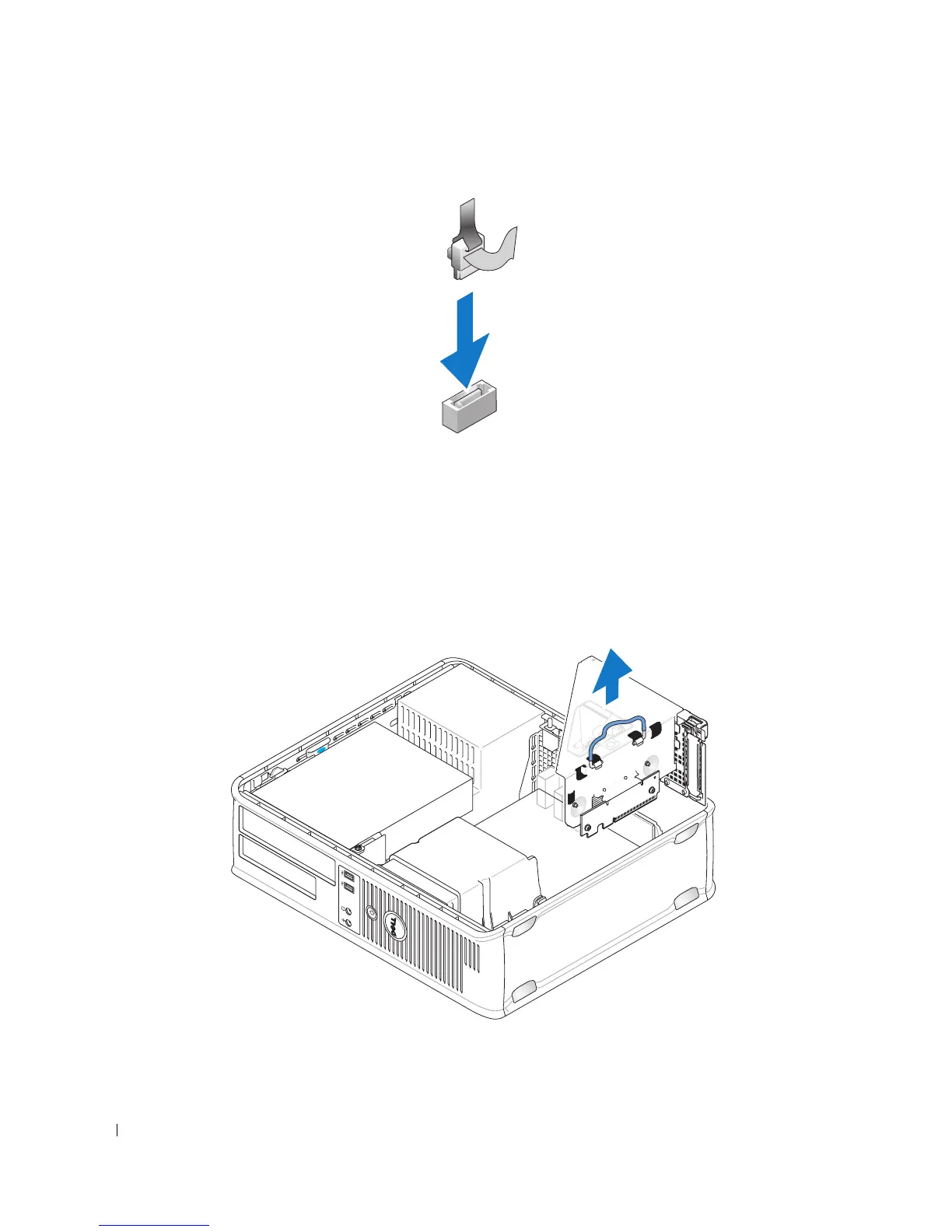

Remove the riser from your computer.
3
Press the blue release tab to remove the filler panel for the card slot you are using for the eSATA
connector.
