Drives 129
Connecting and Disconnecting Drive Cables

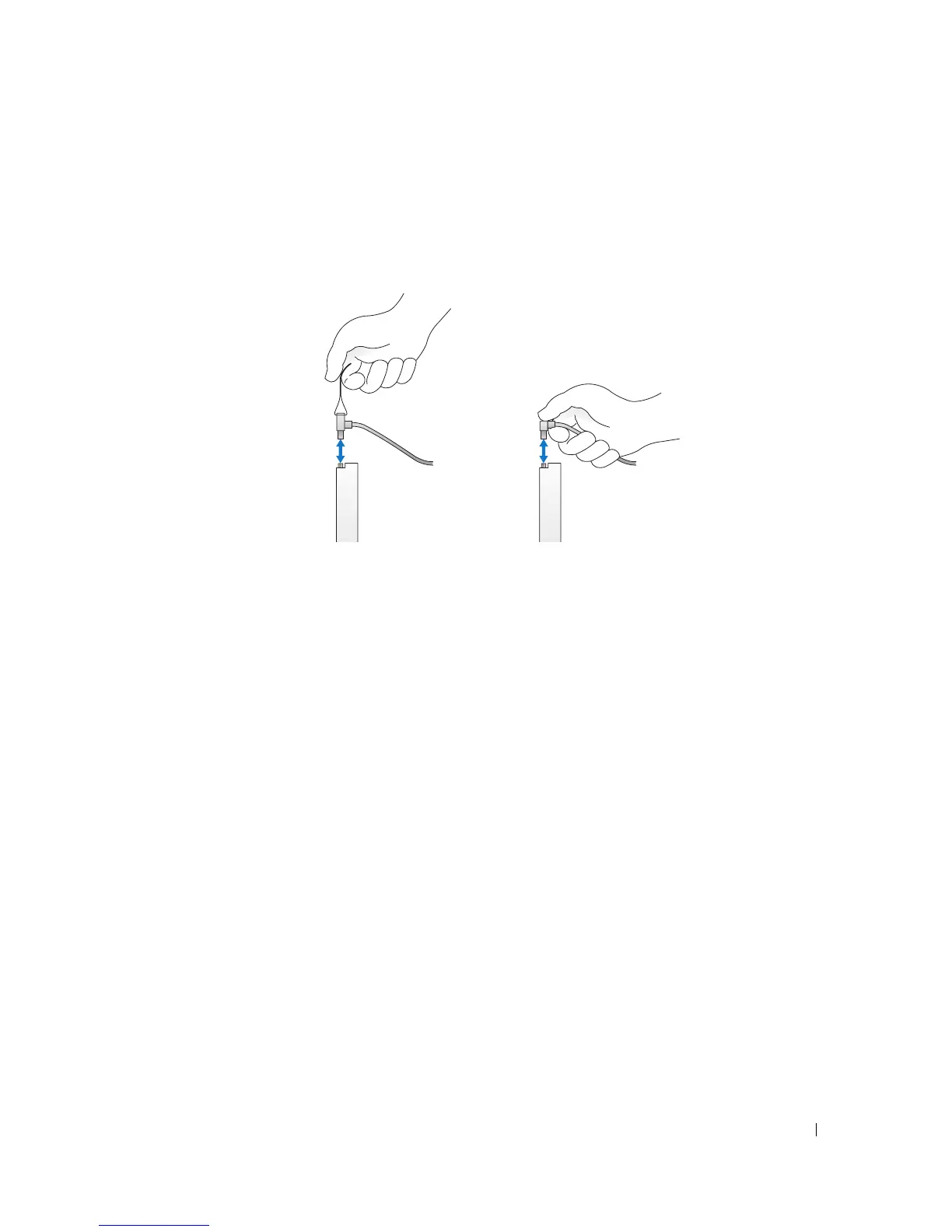

When removing a cable with a pull-tab, grasp the colored pull-tab and pull until the connector detaches.
When connecting and disconnecting a cable without a pull tab, hold the cable by the black connector at
each end.
Drive Inserts
Your computer will come with a plastic insert with shoulder screws and a metal insert.
Removing Drive Inserts
If you are installing a new drive:
1
Follow the procedures in "Before You Begin" on page 21.
2
Remove the computer cover (see "Removing the Computer Cover" on page 90).
3
Lift the drive release latch.
4
Slide the metal bracket toward the back of the computer and lift up.
