122 Expansion Cards
4
Gently lift the release tab on the card retention latch from the inside to pivot the latch open. Pivot the
latch until it snaps into the open position.
5
Disconnect the PS/2 serial-port cable from the system board (see "System Board Components" on
page 95).
6
Grasp the PS/2 serial-port adapter bracket by its top corners, and ease it out of its connector.
7
If you are removing the adapter permanently, install a filler bracket in the empty card-slot opening.
NOTE: Installing filler brackets over empty card-slot openings is necessary to maintain FCC certification of
the computer. The brackets also keep dust and dirt out of your computer.
8
Before you close the card retention mechanism, ensure that:
• The tops of all cards and filler brackets are flush with the alignment bar.
• The notch in the top of the card or filler bracket fits around the alignment guide.
9
Secure the card(s) by closing the card retention latch and snapping it into place.
10
Replace the riser-card cage:
a
Align the tabs in the side of the riser-card cage with the slots on the side of the computer, and slide
the riser-card cage down into place.
b
Ensure that the riser-card connectors are fully seated in the connectors on the system board.
c
Rotate the riser-card cage handle to the down position.

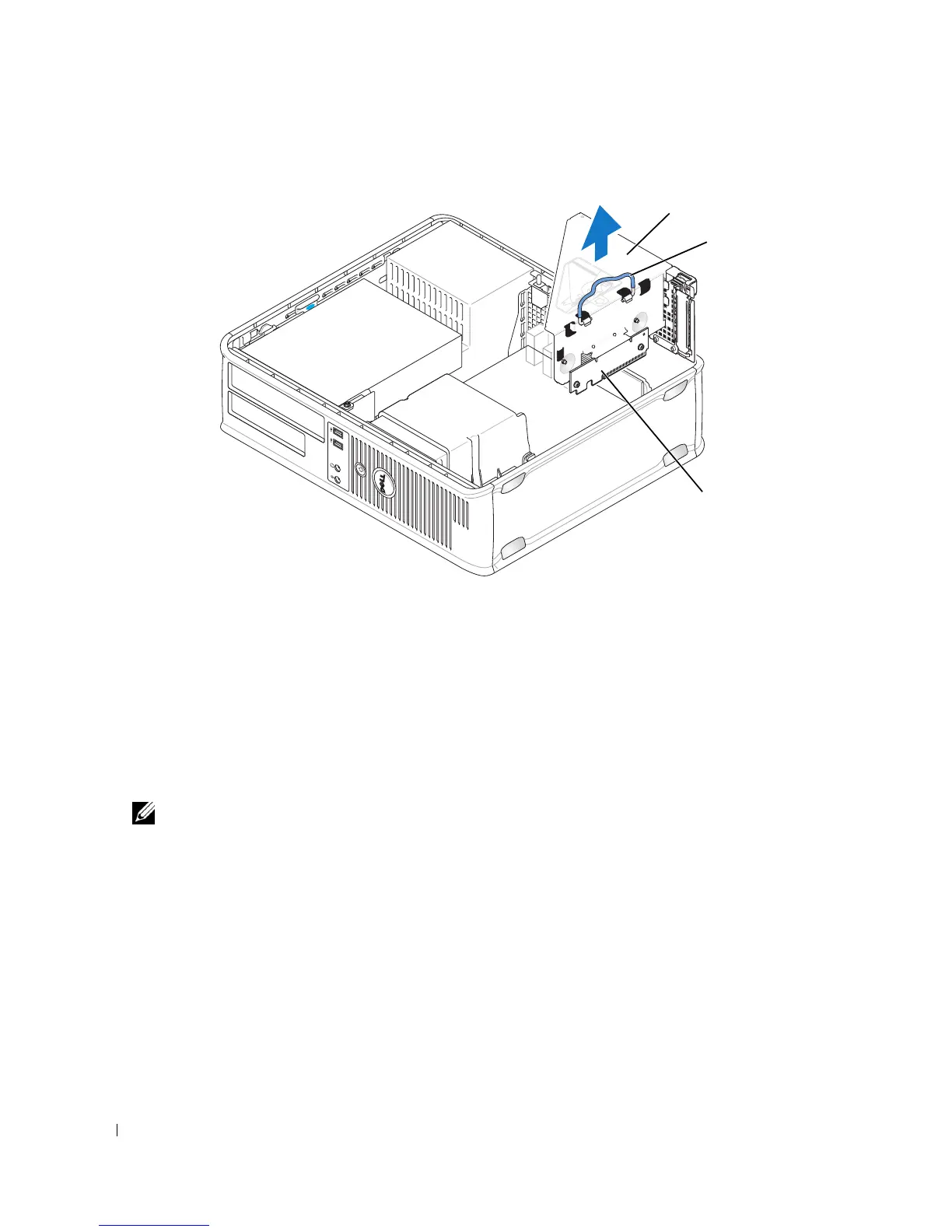

1 riser-card cage 2 handle 3 riser cards (2)
1
2
3
