Install the heat sink assembly:
a
Place the heat sink assembly back onto the heat-sink assembly bracket.
b
Rotate the heat sink assembly down towards the computer base and tighten the two captive
screws.
NOTICE: Ensure that the heat sink assembly is correctly seated and secure.
13
Replace the computer cover (see "Replacing the Computer Cover" on page 317).

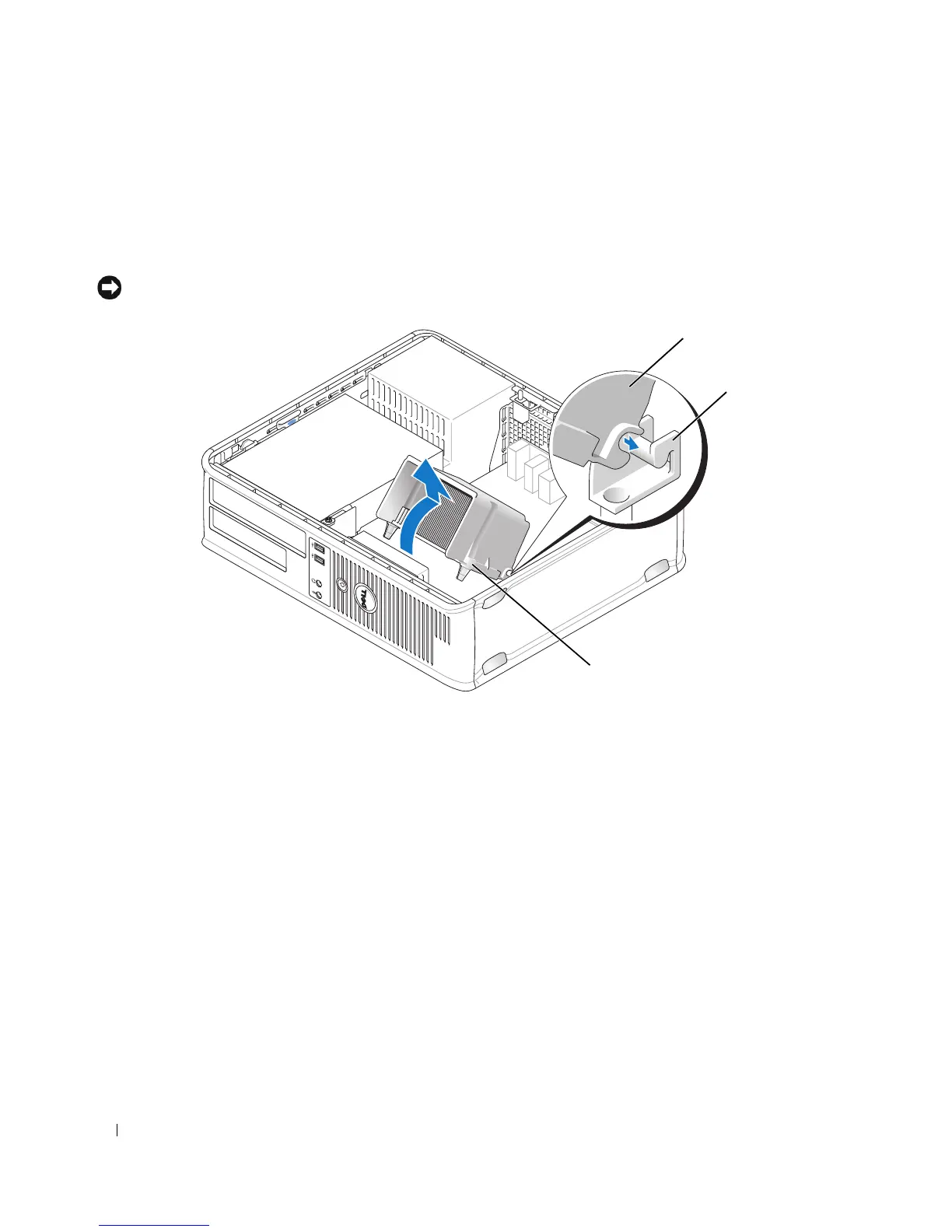

1 heat sink assembly
2 heat-sink assembly bracket
3 captive screw housing (2)
3
1
2
