Drives 207
NOTICE: Do not pull the drive out of the computer by the drive cables. Doing so may cause damage to cables and
the cable connectors.
5
If you are removing a floppy drive, pull up the cable release tab to unlock it.
6
Gently lift the data cable from the floppy data cable edge connector.
7
Disconnect the data cable from the system board.
8
Pull up on the drive release latch and slide the floppy drive or media card reader towards the back of
the computer. Then lift up to remove the drive.
9
Replace the computer cover (see "Replacing the Computer Cover" on page 317).

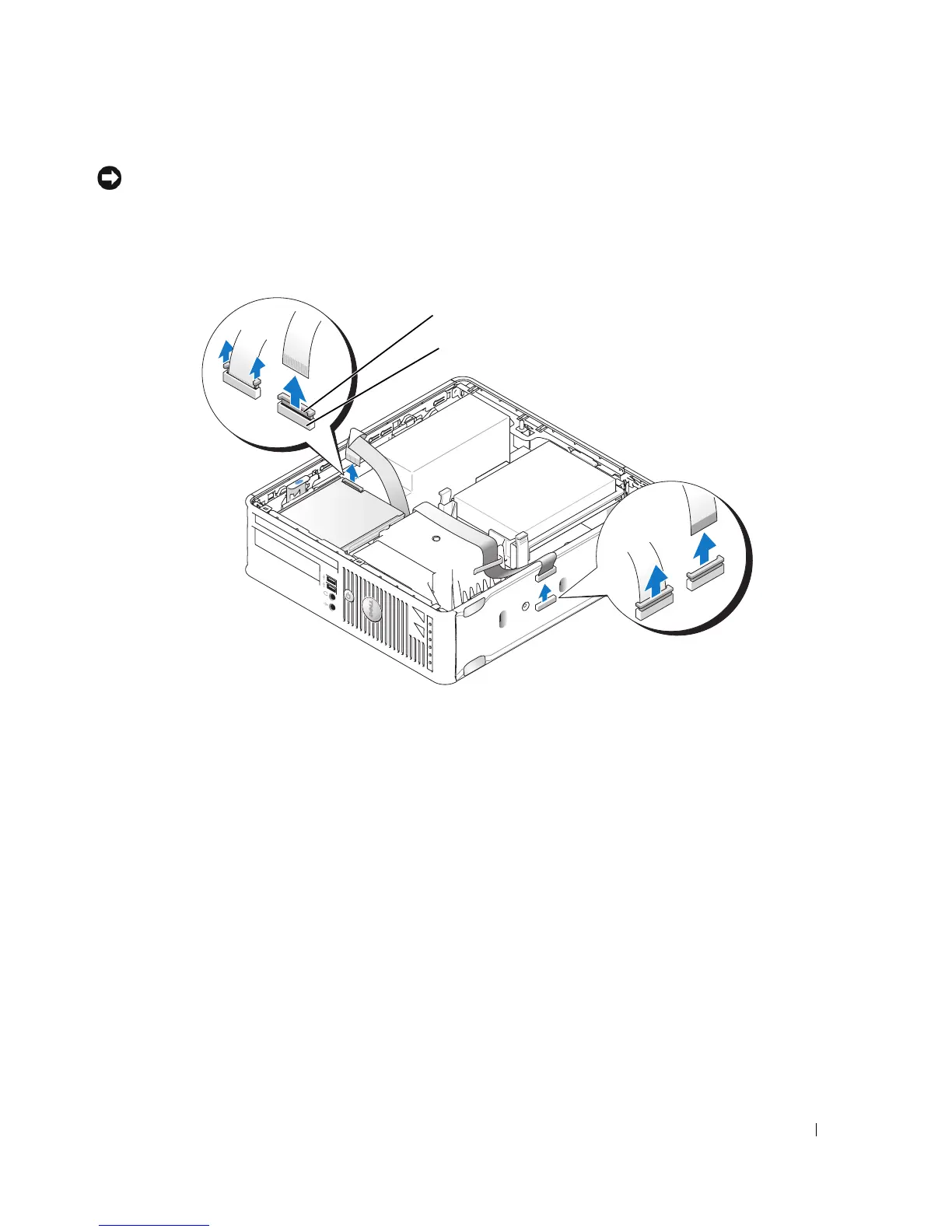

1 cable release tab 2 data cable edge connector
1
2
