Processor 215
3
Unpack the new processor, being careful not to touch the underside of the processor.
NOTICE: You must position the processor correctly in the socket to avoid permanent damage to the processor and
the computer when you turn on the computer.
4
If the release lever on the socket is not fully extended, move it to that position.
5
Orient the front and rear alignment-notches on the processor with the front and rear alignment-
notches on the socket.
6
Align the pin-1 corners of the processor and socket.
NOTICE: To avoid damage, ensure that the processor aligns properly with the socket, and do not use excessive
force when you install the processor.
7

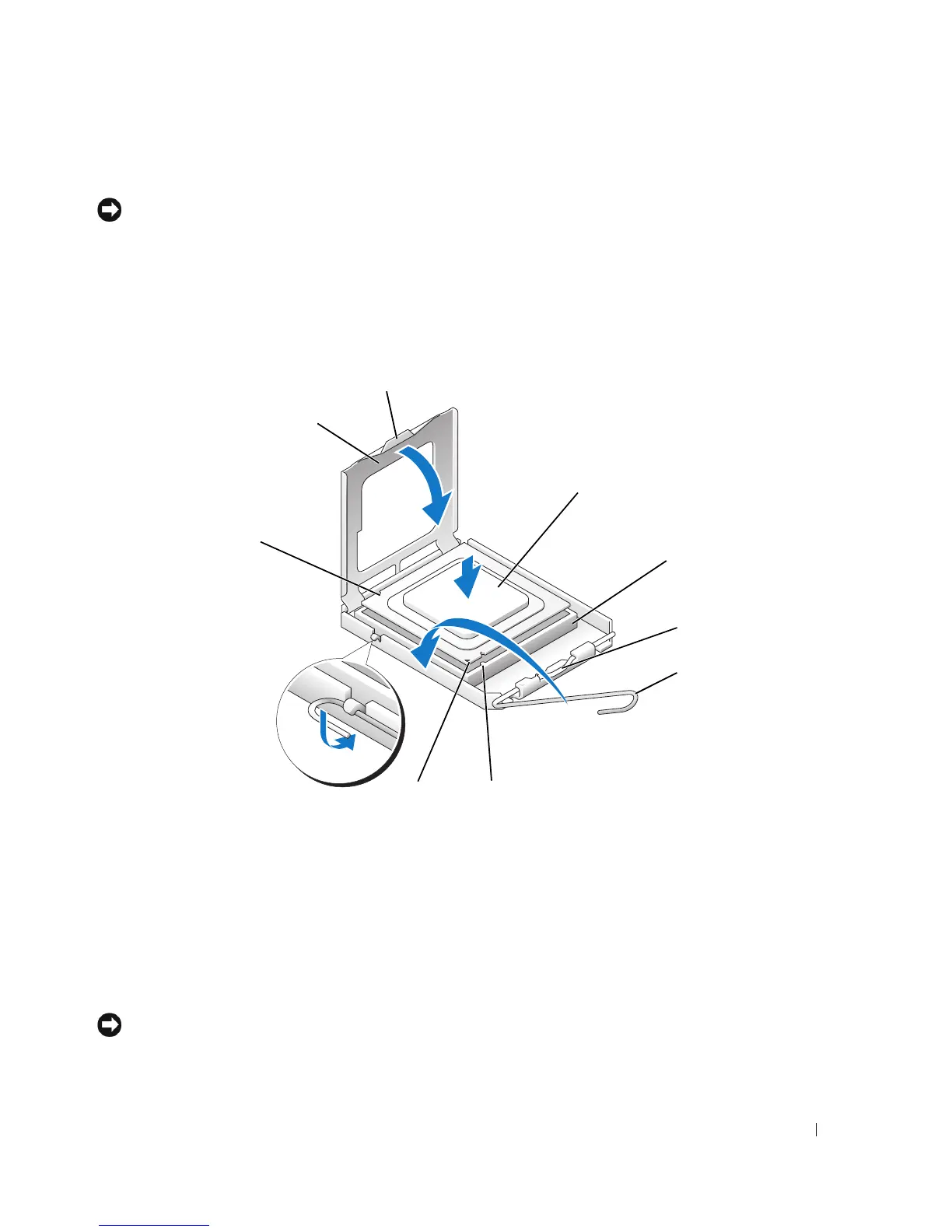

Set the processor lightly in the socket and ensure that the processor is positioned correctly.
1 processor cover 6 release lever
2 tab 7 front alignment-notch
3 processor 8 socket and processor pin-1 indicator
4 processor socket 9 rear alignment-notch
5 center cover latch
1
3
4
6
8
7
9
2
5
