Drives 253
3
Remove the hard drive fan:
a
Remove the screw that secures the fan release tab to the hard drive bracket.
b
Press down on the fan release tab, and then slide the fan towards the front of the computer so that
its side tabs are free of the corresponding slots in the hard drive bracket.
c
Lift to remove the fan from the hard drive bracket.
d
Unplug the fan.

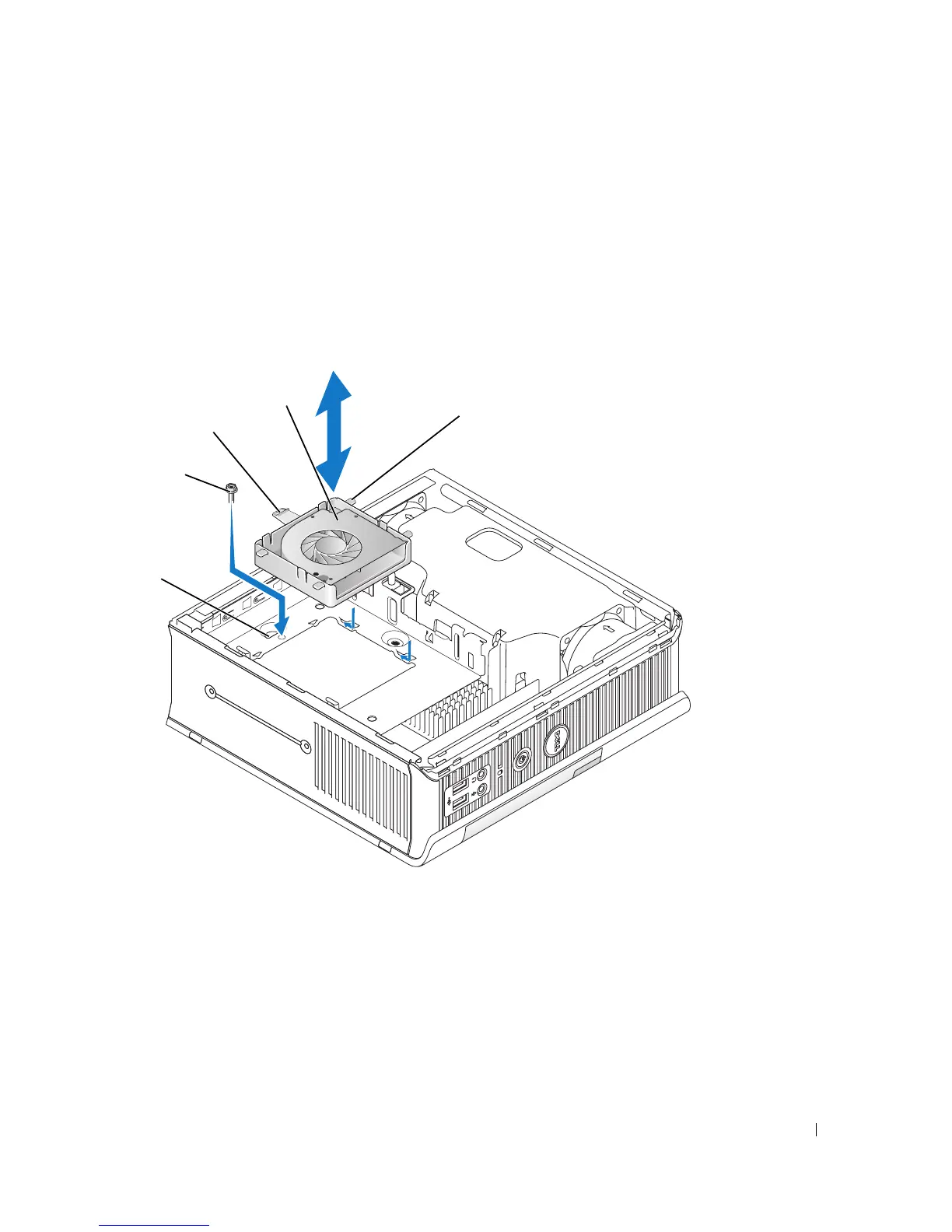

1 hard drive bracket
2screw
3 fan release tab
4fan
5side tab
3
4
5
1
2
