44 Cards
10
Before you lower the card retention mechanism, ensure that:
• The tops of all cards and filler brackets are flush with the alignment bar.
• The notch in the top of the card or filler bracket fits around the alignment guide.
11
Secure the card(s) by closing the card retention latch and snapping it into place.
NOTICE: Do not route card cables over or behind the cards. Cables routed over the cards can prevent the
computer cover from closing properly or cause damage to the equipment.
12
Connect any cables that should be attached to the card.
See the documentation for the card for information about the card’s cable connections.
13
Replace the computer cover (see "Replacing the Computer Cover" on page 317), reconnect the
computer and devices to electrical outlets, and then turn them on.
NOTICE: To connect a network cable, first plug the cable into the network wall jack and then plug it into the
computer.

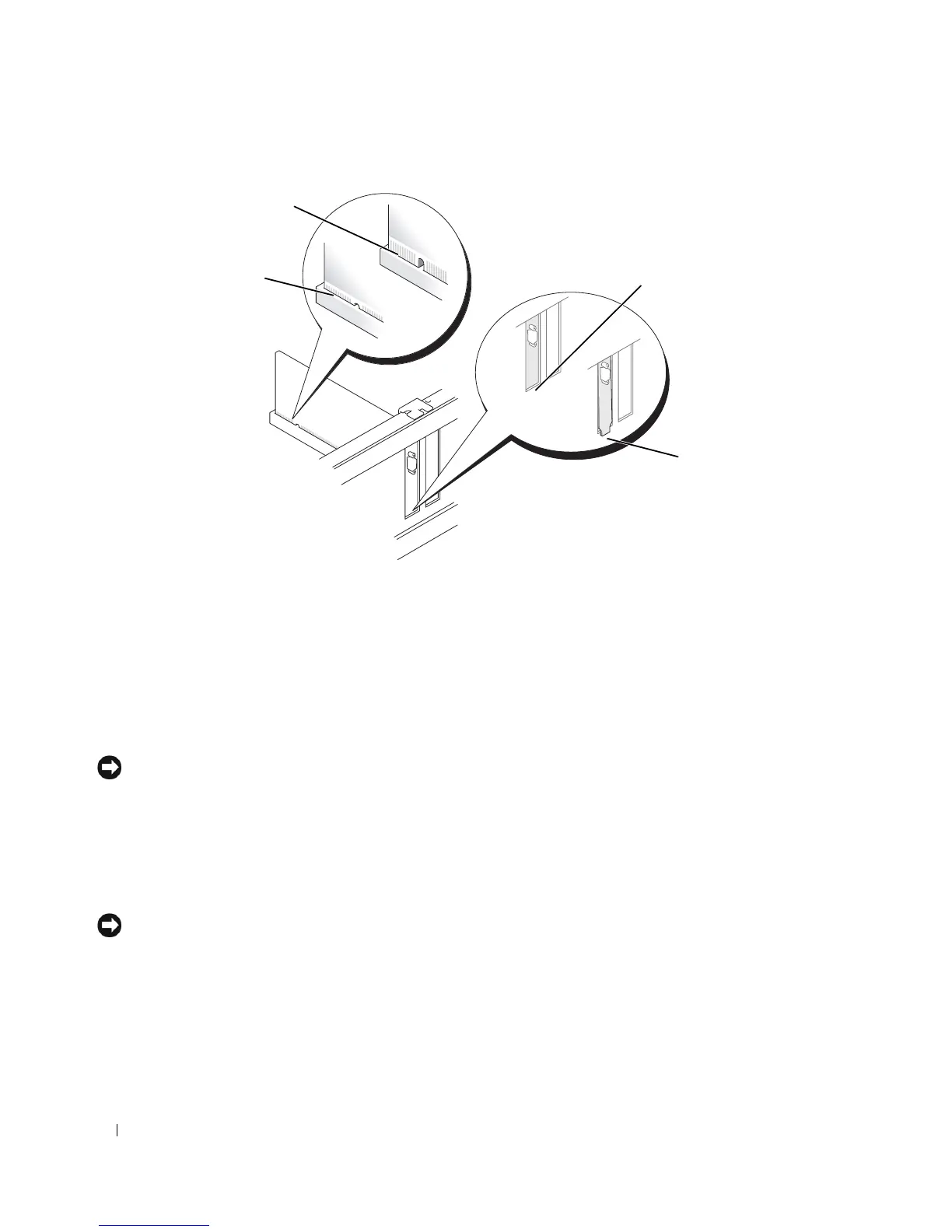

1 card fully seated 2 card not fully seated
3 bracket within slot 4 bracket caught outside of slot
1
2
3
4
