48 Cards
4
Remove the filler bracket (if applicable).
NOTE: See the documentation that came with the PS/2 serial port adapter for information on configuring the
adapter, making internal connections, or customizing it for your computer.
5
Align the PS/2 serial-port adapter bracket in the retention slot and press down firmly. Ensure that the
adapter is fully seated in the slot.
B
efore you close the card retention mechanism, ensure that:
• The tops of all adapters and filler brackets are flush with the alignment bar.
• The notch in the top of the adapter or filler bracket fits around the alignment guide.
6
Close the card retention latch and gently press until it snaps into place.
NOTICE: Do not route cables over any installed cards. Cables routed over the cards can prevent the computer
cover from closing properly or cause damage to the equipment.
7
Connect the adapter cable to the serial port adapter connector (SERIAL2) on the system board (see
"System Board Components" on page 32 for connector locations).

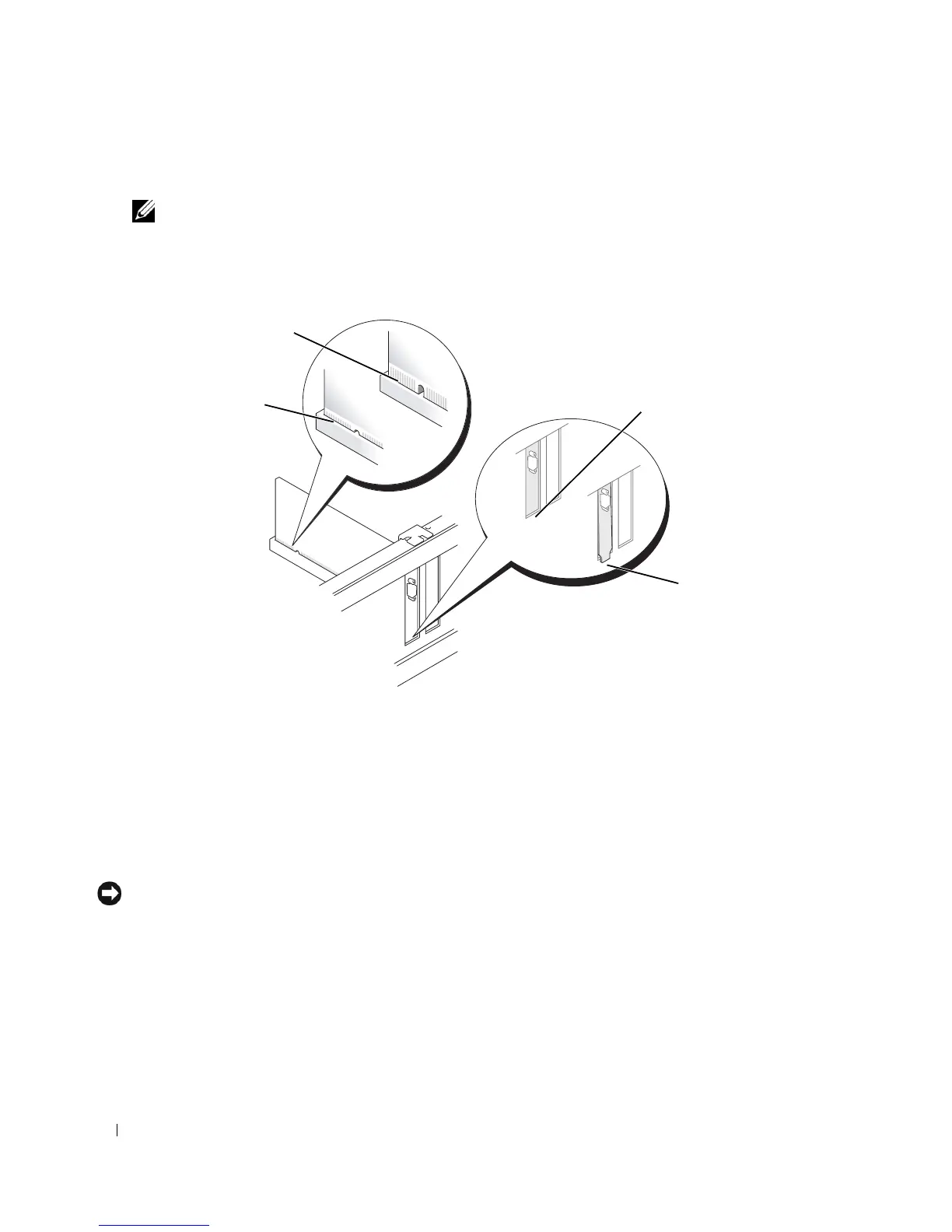

1 card fully seated 2 card not fully seated
3 bracket within slot 4 bracket caught outside of slot
1
2
3
4
