Dell PowerEdge C6220 II - Page 15

About Your System | 15

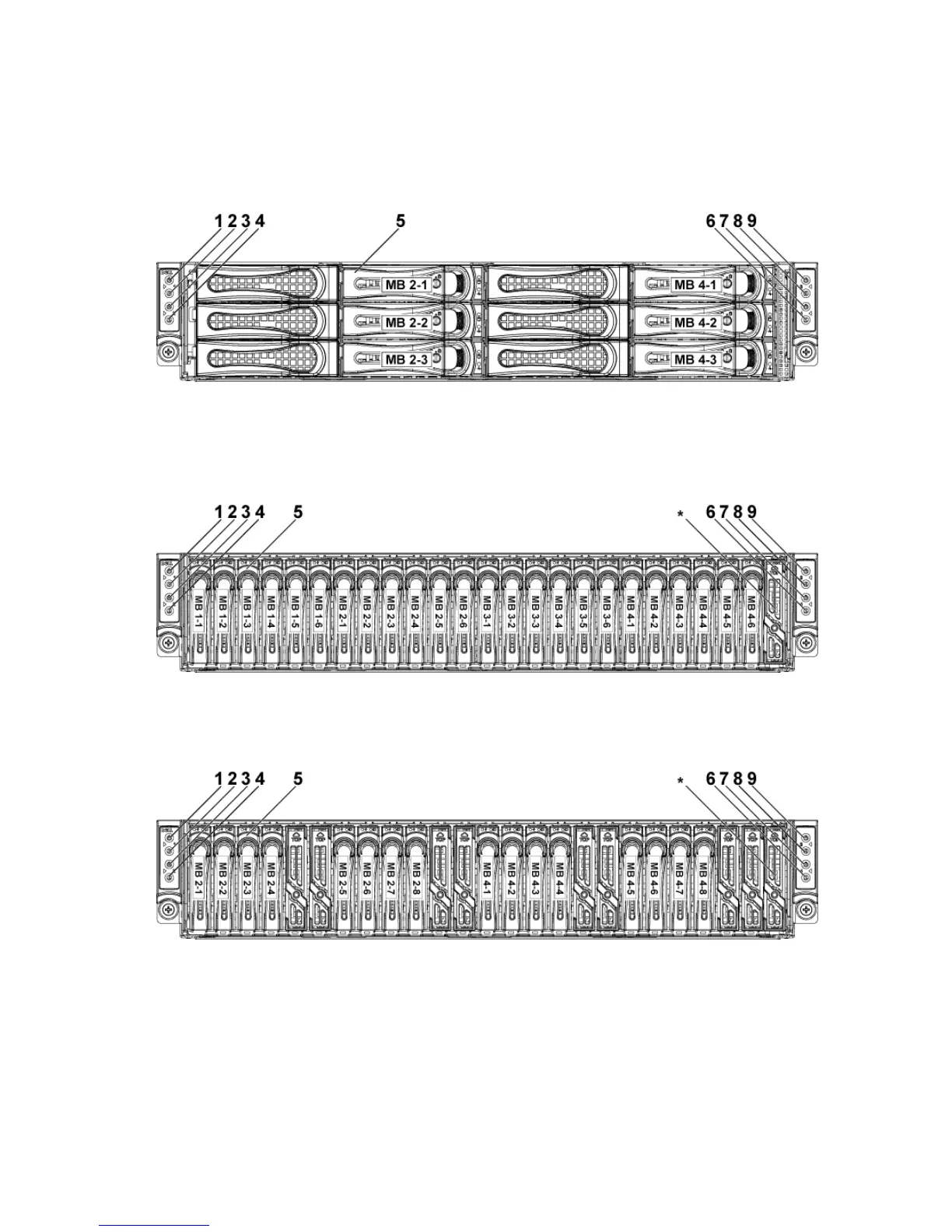

Figure 1-3. Front Panel−3.5” x6 Hard Drives With Two System Board
(C6220 Onboard SATA Controller)
Figure 1-4. Front Panel−2.5” x24 Hard Drives With Four System Boards
(C6220/C6220 II RAID Card & Onboard SATA Controller)
Figure 1-5. Front Panel−2.5” x16 Hard Drives With Two System Boards
(C6220/C6220 II RAID Card)
