3. Drives 4. Release handle
5. Express service tag

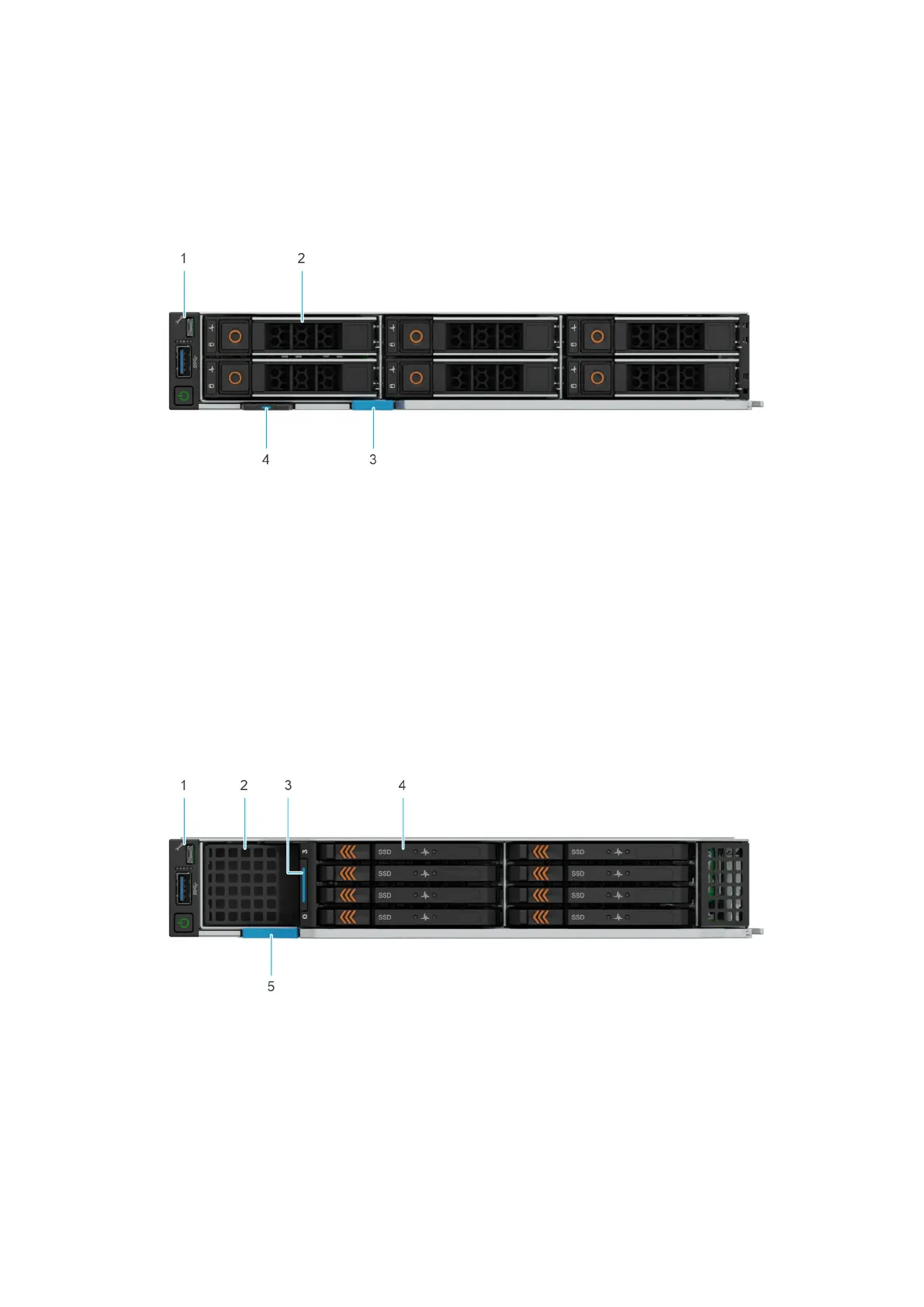

Figure 3. Front view of the 6 x 2.5-inch drive system
1. Front I/O module
2. Drives
3. Release handle
4. Express service tag
Figure 4. Front view of the 8 x E3.s drive system
1.
Front I/O module 2. Drive blank
3. Express service tag 4. Drives
5. Release handle
