System configurations - front view for PowerEdge
MX760c

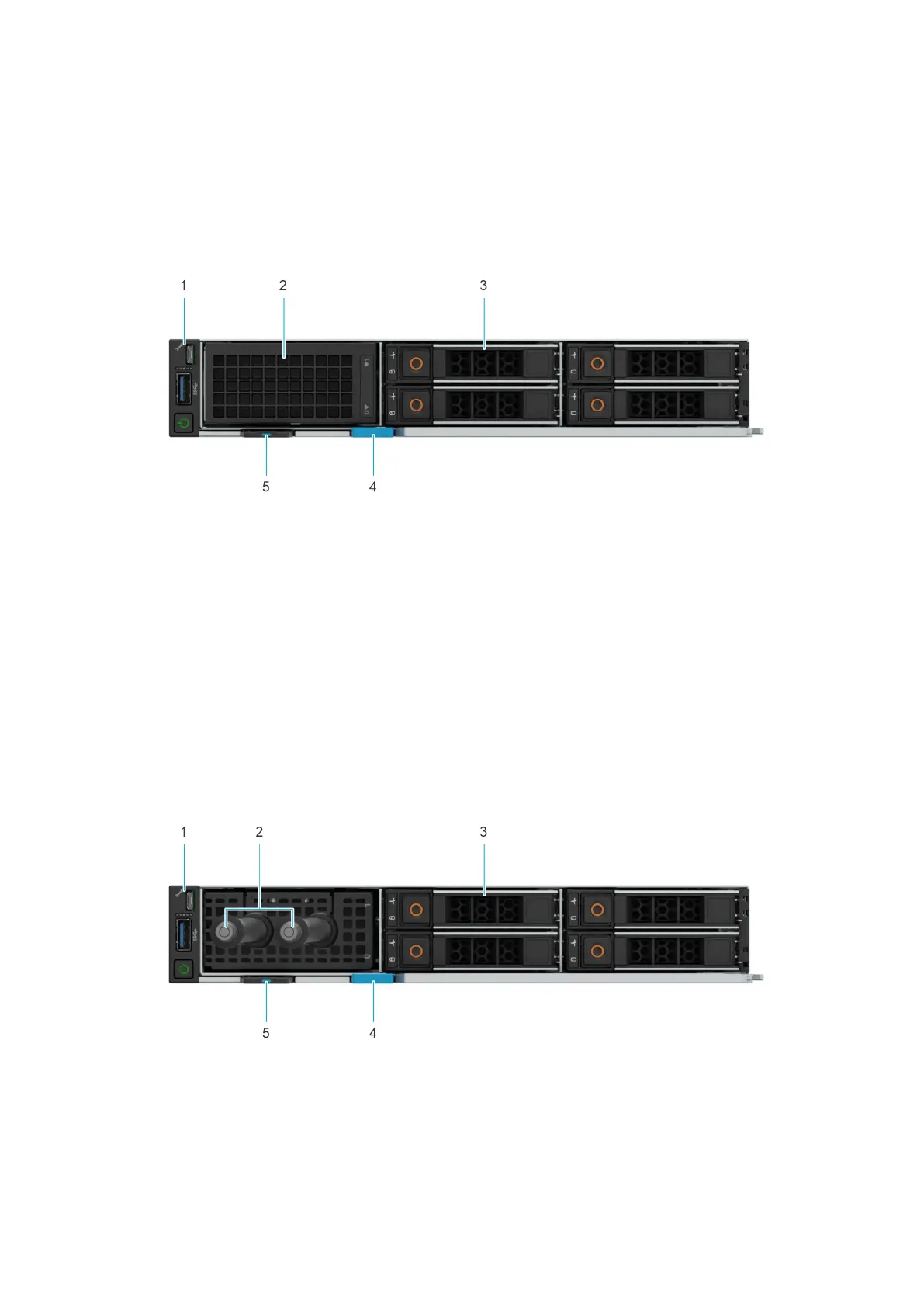

Figure 1. Front view of the 4 x 2.5-inch drive system
1. Front I/O module
2. Drive blank
3. Drives
4. Release handle
5. Express service tag
Figure 2. Front view of the 4 x 2.5-inch drive system with liquid cooling
1.
Front I/O module 2. Liquid cooling tubes
Dell PowerEdge MX760c system configurations and features 9
