Dell PowerEdge MX760c - Cable Routing

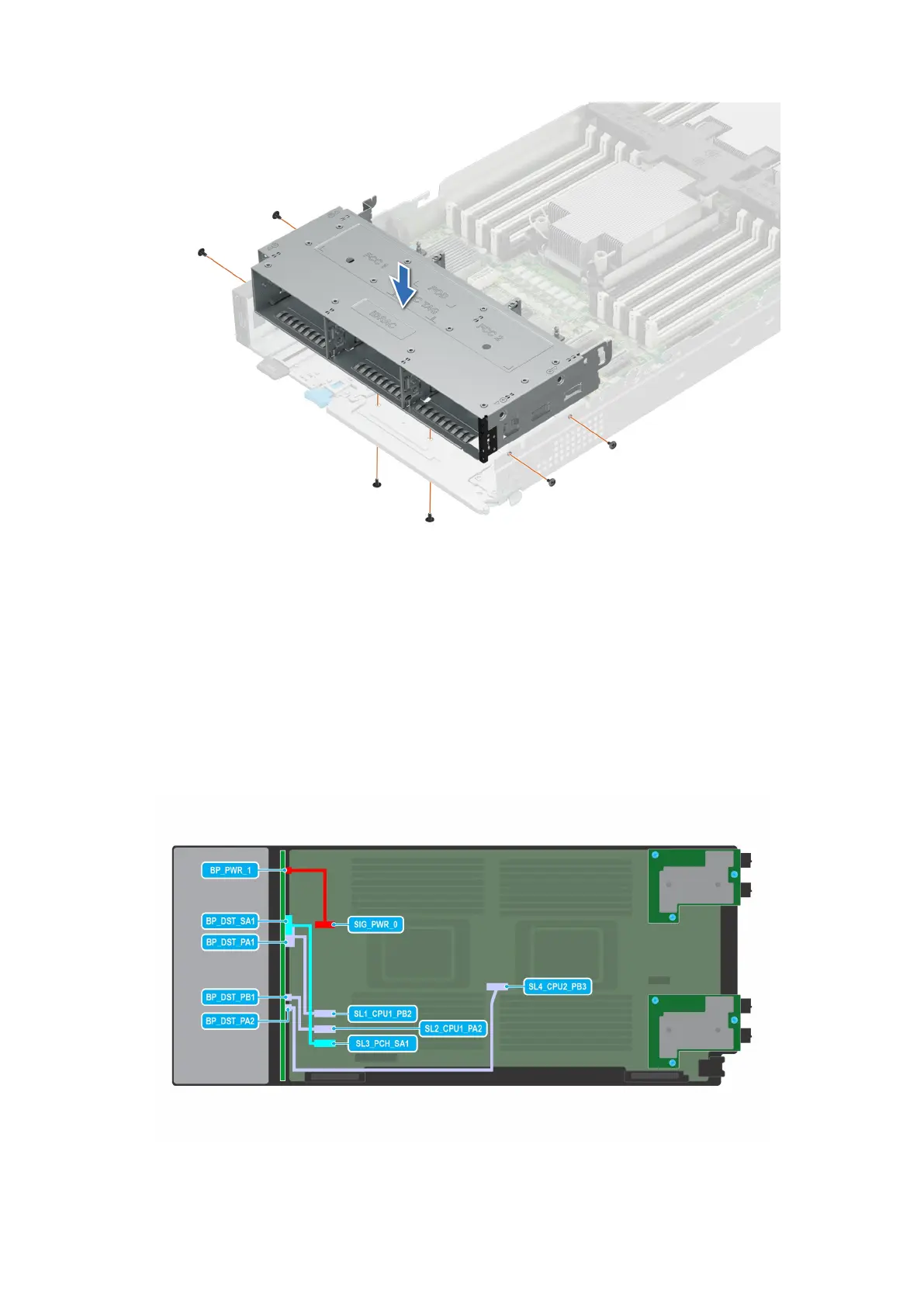

Figure 51. Installing the drive cage of 8 x E3.s drive sled
Next steps
1. Install the drive backplane.
2. Install all drives.
3. Follow the procedure listed in After working inside your system. .
Cable routing
Figure 52. SAS/SATA/NVMe cabling diagram of configuration 0 - 6 x 2.5-inch universal backplane
Installing and removing system components
83
