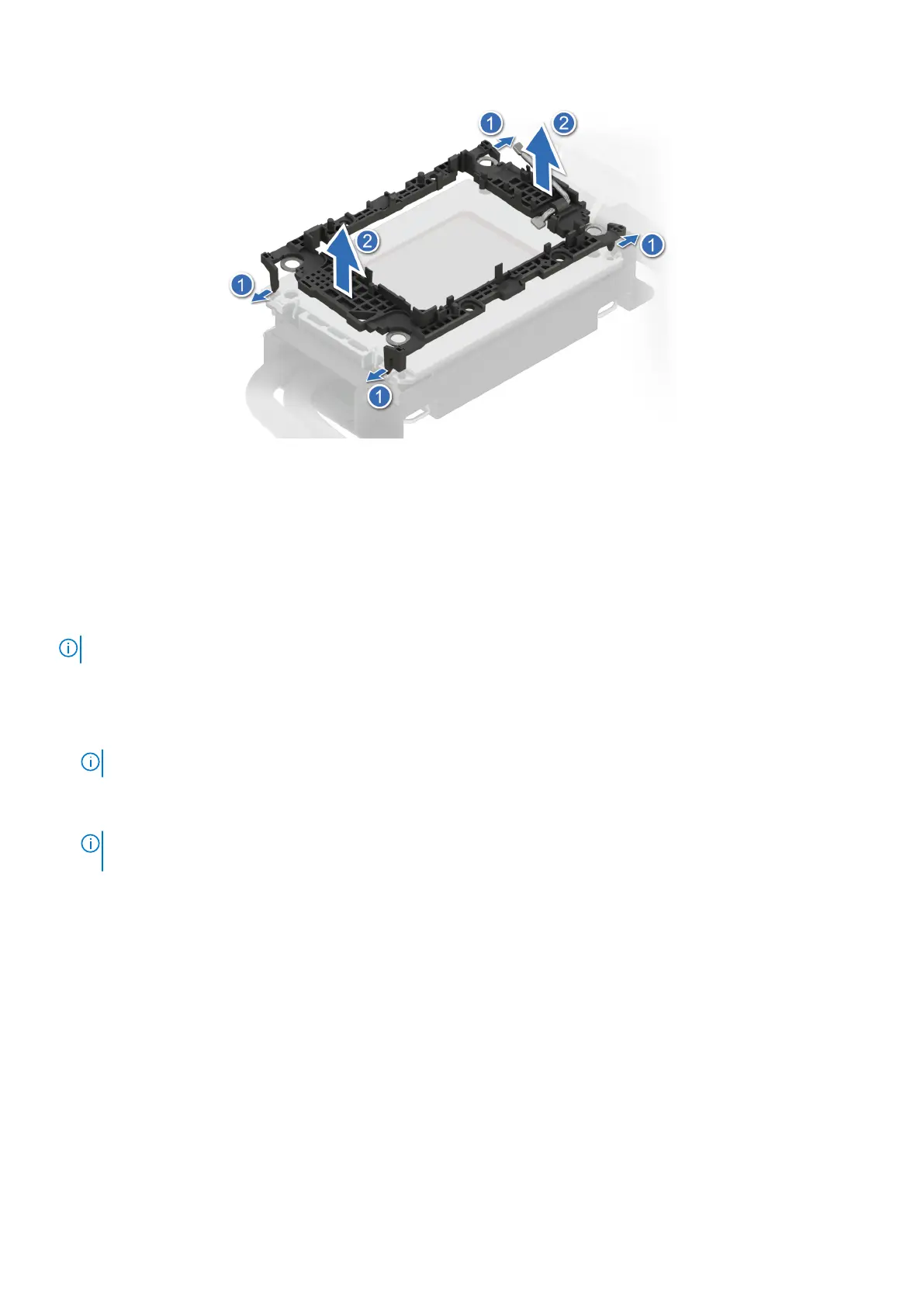

Figure 86. Removing the processor retaining clip
Installing the processor into a liquid cooling cold plate
Prerequisites
1. Follow the safety guidelines listed in the Safety instructions.
2. Follow the procedure listed in Before working inside your system.
NOTE: The CPU assembly orientation between CPU 1 and CPU2 is reverse.
Steps
1. Place the processor in the processor tray.
Ensure to install one processor at a time.
NOTE: Ensure that the pin 1 indicator on the processor tray is aligned with the pin 1 indicator on the processor.
2. Place the processor retaining clip on top of the processor that is in the processor tray aligning pin 1 indicator on the
processor.
NOTE:
Ensure that the pin 1 indicator on the retaining clip is aligned with the pin 1 indicator on the processor before
placing the retaining clip on the processor.
Installing and removing system components 111
