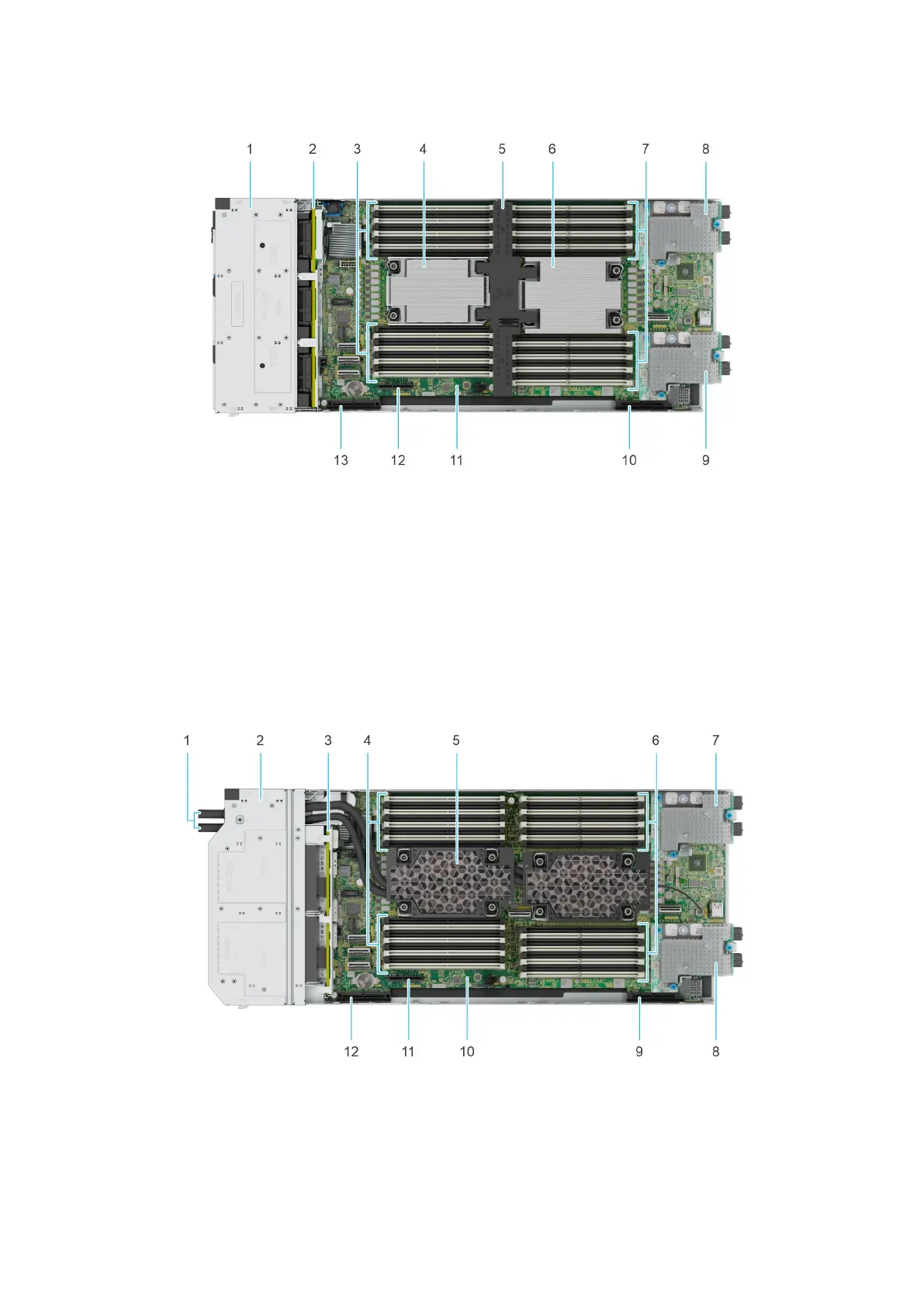

Figure 8. Inside the system (6 x 2.5-inch drive sled)
1.
Drive cage 2. Backplane
3. Memory modules for Processor 1 4. Processor and heat sink module 1
5. Air shroud 6. Processor and heat sink module 2
7. Memory modules for Processor 2 8. Mezzanine card A
9. Mezzanine card B 10. Mini Mezzanine connector C
11. System board 12. BOSS-N1 (M.2)
13. PERC connector (H755 MX, H965i MX, HBA350i MX)
Figure 9. Inside the system (8 x E3.s drive sled) with liquid cooling
1.
Liquid cooling tubes 2. Drive cage
3. Backplane 4. Memory modules for Processor 1
5. Liquid cooling with Processor and heat sink module 1 and 2 6. Memory modules for v 2
Dell PowerEdge MX760c system configurations and features 13
