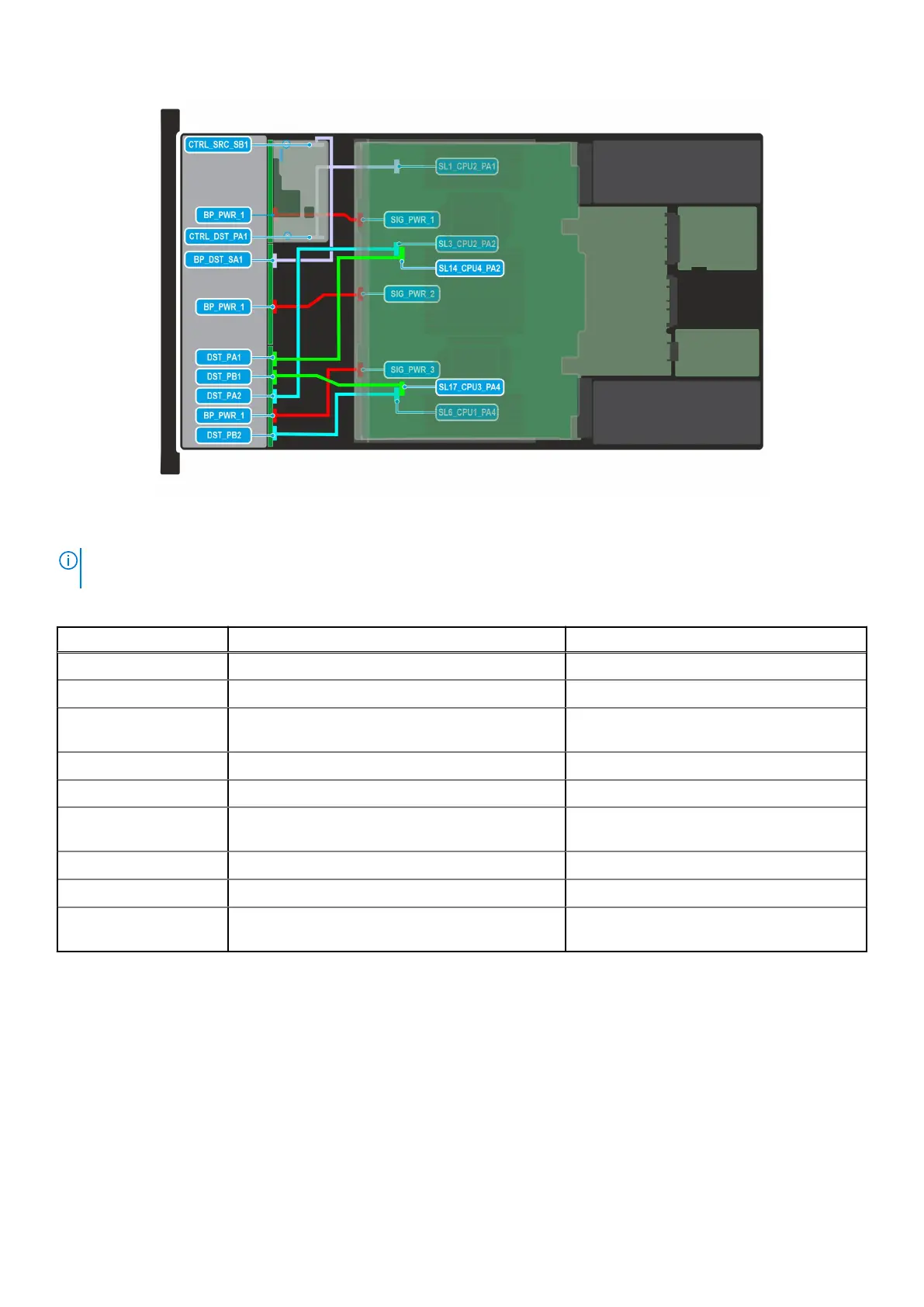

Figure 63. Configuration 4: 16 x 2.5-inch SAS/SATA + 8 x 2.5-inch NVMe with fPERC 11
NOTE:
Follow the sequential order as shown in the table to remove the cables, to install the cables follow the reverse
sequential order.
Table 70. 16 x 2.5-inch SAS/SATA + 8 x 2.5-inch NVMe with fPERC 11
Order From To
1 SL14_CPU4_PA2 (signal connector on PEM) DST_PA1 (backplane signal connector)
2 SL17_CPU3_PA4 (signal connector on PEM) DST_PB1 (backplane signal connector)
3 SL1_CPU2_PA1 (signal connector on system
board)
CTRL_DST_PA1 (fPERC input connector)
4 CTRL_SRC_SB1 (fPERC controller connector) BP_DST_SA1 (backplane signal connector)
5 SIG_PWR_1 (system board power connector) BP_PWR_1 (backplane power connector)
6 SL3_CPU2_PA2 (signal connector on system
board)
DST_PA1 (backplane signal connector)
7 SIG_PWR_2 (system board power connector) BP_PWR_1 (backplane power connector)
8 SIG_PWR_3 (system board power connector) BP_PWR_1 (backplane power connector)
9 SL6_CPU1_PA4 (signal connector on system
board)
DST_PB2 (backplane power connector)
