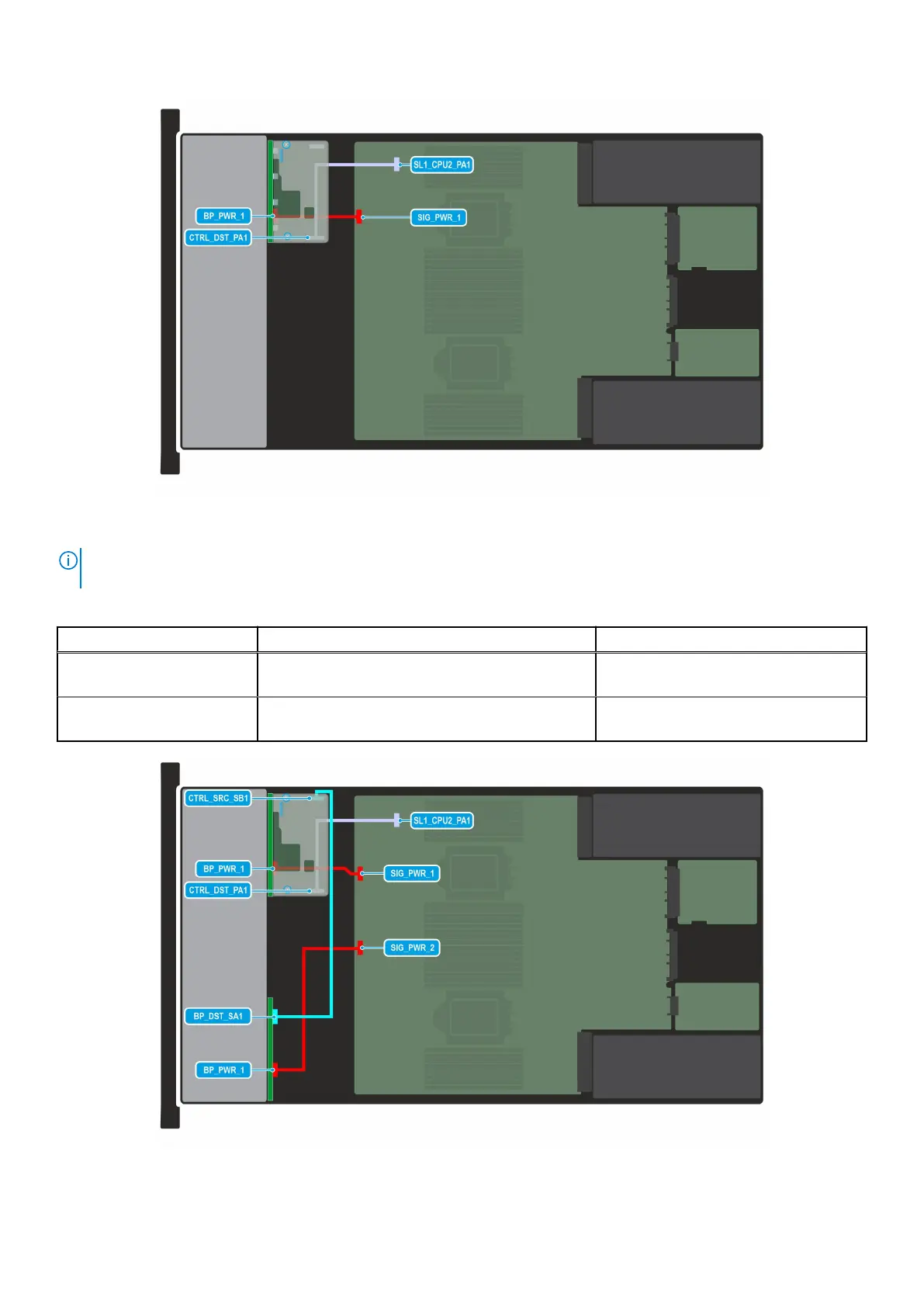

Figure 60. Configuration 1: 8 x 2.5-inch SAS/SATA with fPERC 11
NOTE:
Follow the sequential order as shown in the table to remove the cables, to install the cables follow the reverse
sequential order.
Table 67. 8 x 2.5-inch SAS/SATA with fPERC 11
Order From To
1 SL1_CPU2_PA1 (signal connector on system board) CTRL_DST_PA1 (fPERC input
connector)
2 SIG_PWR_1 (system board power connector) BP_PWR_1 (backplane power
connector)
Figure 61. Configuration 2: 16 x 2.5-inch SAS/SATA with fPERC 11
