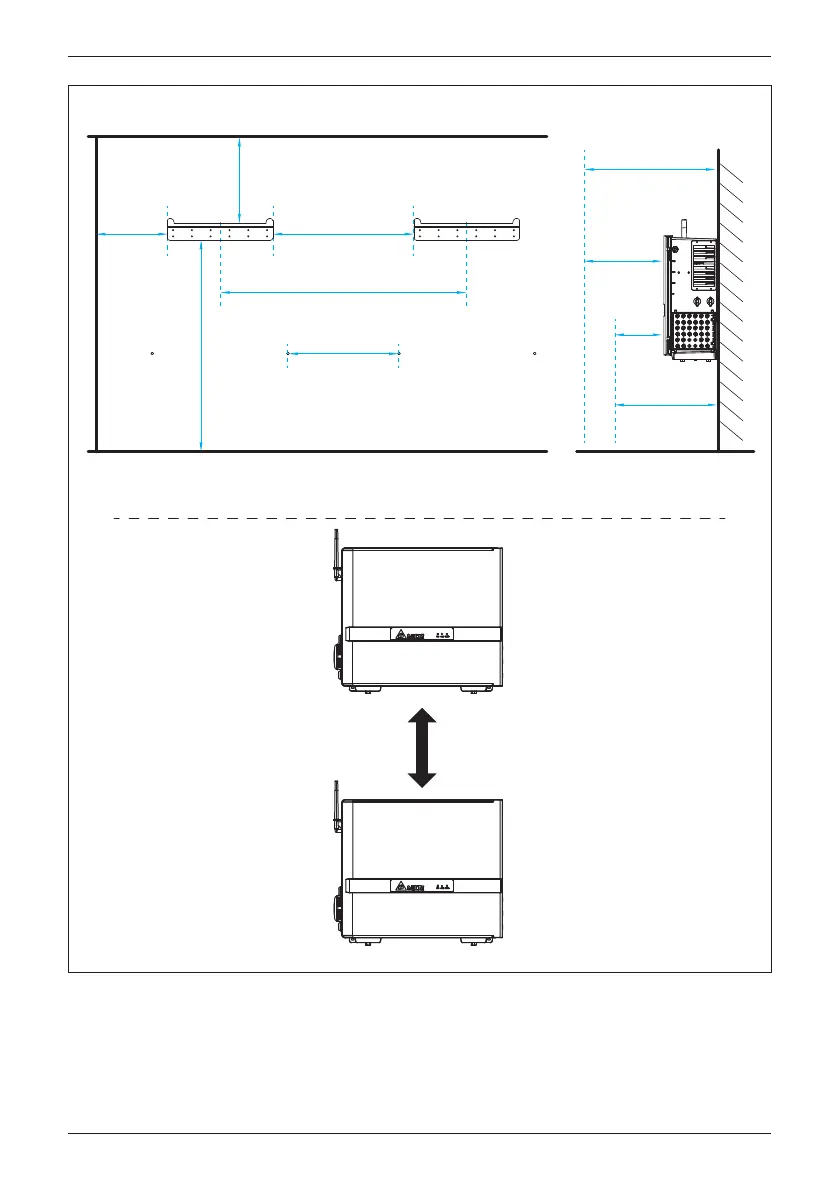

Figure 3-7: Required mounting clearances
* If wiring without door. (To remove the door, please refer to Chapter 5)
> 415mm
> 570mm
> 840mm
> 708mm
> 1300mm
> 990mm
Wall
Inverter #2Inverter #1
> 700mm
> 690mm*
> 400
mm*
> 320mm
>200 mm
