id-Point Voltage (Vmid) Factory Setting: d12.0
Settings d 2.0 to d 255V Unit: 0.1V

The parameter sets the Mid-Point Voltage of any V/F curve. With this setting, the V/F
ratio between Minimum Frequency and Mid-Point Frequency can be determined. This
parameter must be equal to or greater than Minimum Output Voltage (Pr.1-06) and equal
to or less than Maximum Output Voltage (Pr.1-02).
1 - 05
M
inimum Output Frequency (Fmin) Factory Setting: d 1.0
Settings d 1.0 to d 60.0Hz Unit: 0.1Hz

This parameter sets the Minimum Output Frequency of the AC drive. This parameter
must be equal to or less than Mid-Point Frequency (Pr.1-03).
1 - 06
M
inimum Output Voltage (Vmin) Factory Setting: d12.0
Settings d 2.0 to d 255V Unit: 0.1V

This parameter sets Minimum Output Voltage of the AC drive. This parameter must
be equal to or less than Mid-Point Voltage (Pr.1-04).

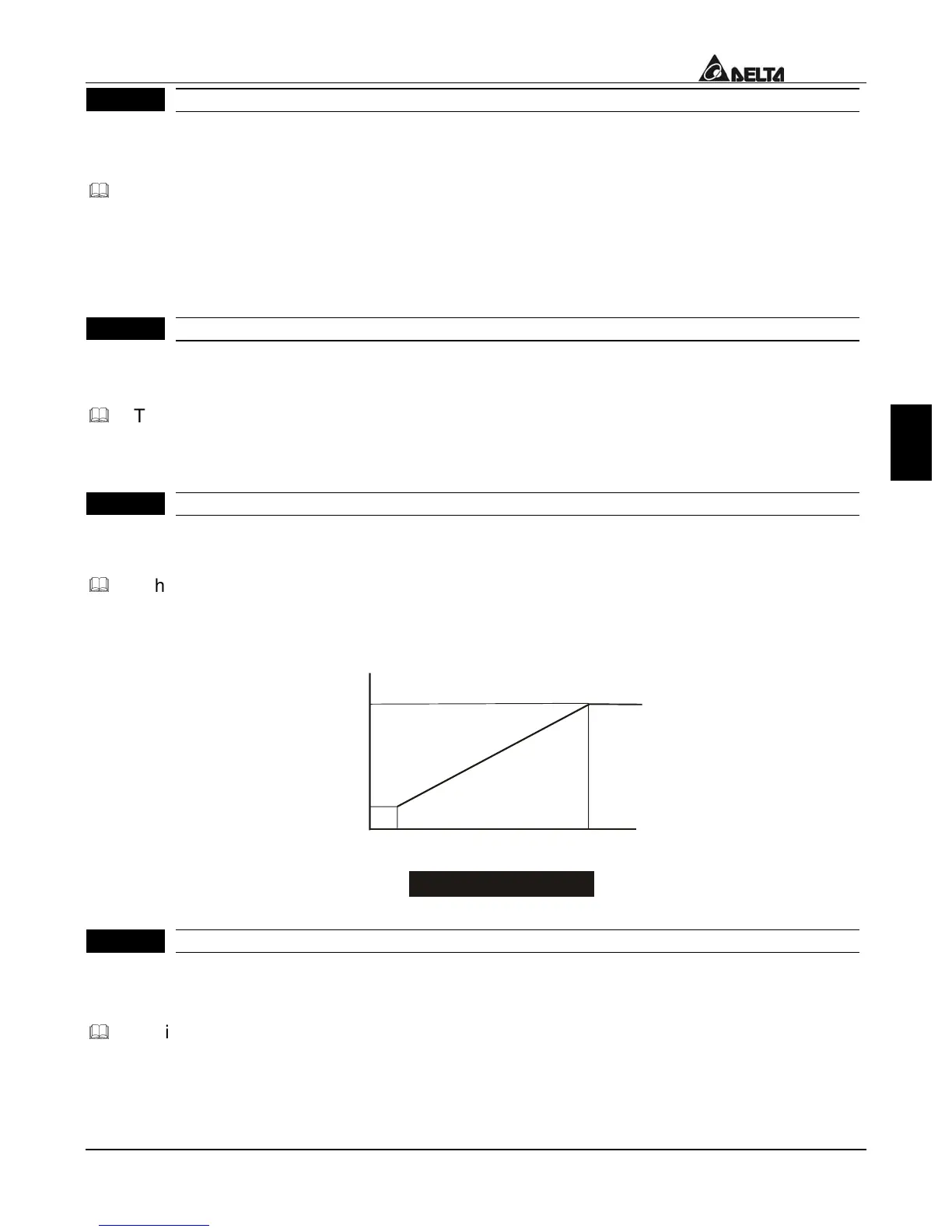

Voltage
Pr.1-02
Pr.1-04
Pr.1-06
0
Pr.1-03
Pr.1-05
Pr.1-00
Pr.1-01
Freq.
Standard V/F Curve
1 - 07
U
pper Bound of Output Frequency Factory Setting: d 100
Settings d 1 to d110% Unit: 1%

This parameter must be equal to or greater than the Lower Bound of Output Frequency
(Pr.1-08). The Maximum Output Frequency (Pr.1-00) is regarded as 100%.
