Delta VFD-L Series User Manual

VFD-L Series
DELTA ELECTRONICS, INC. ALL RIGHTS RESERVED

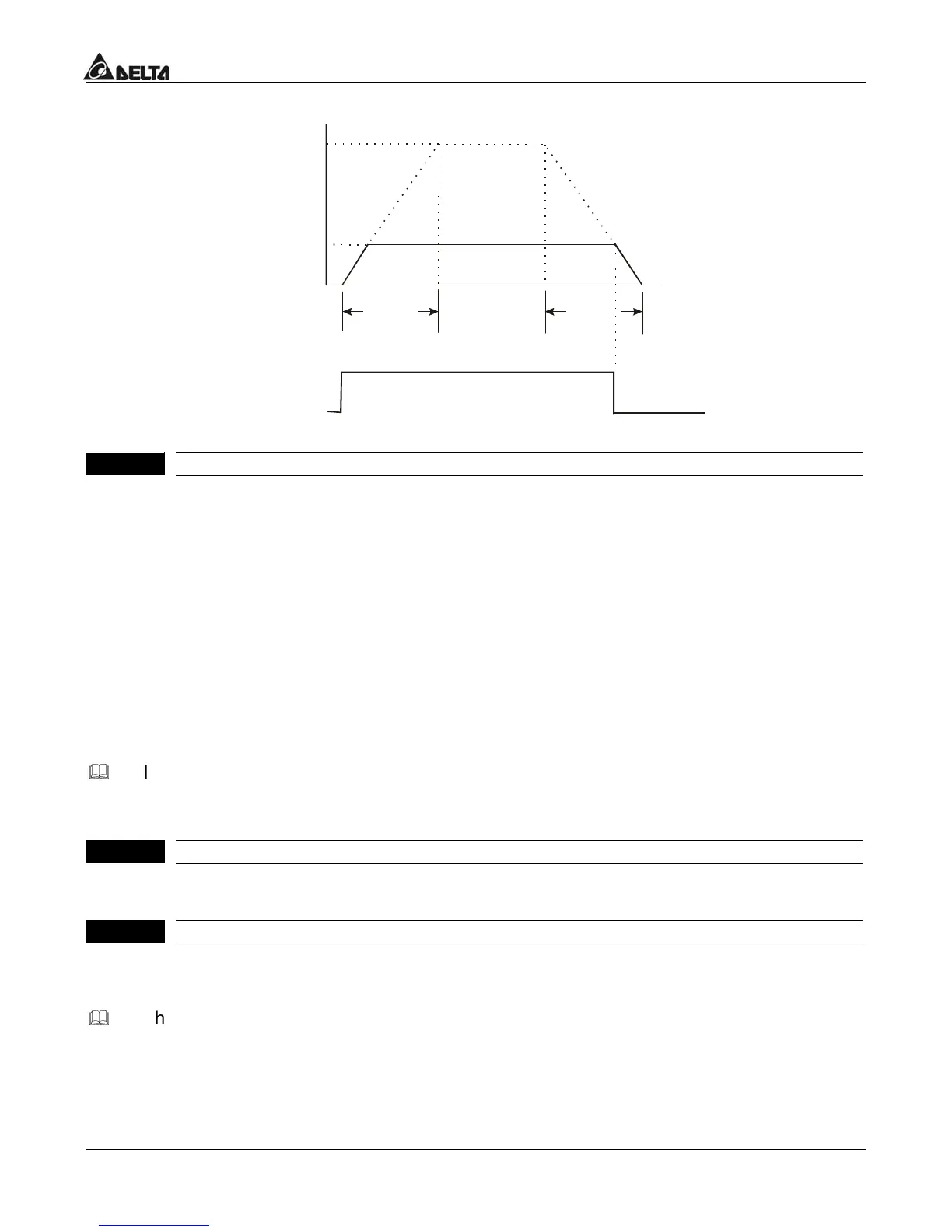

5-8
Frequency
Max.
Output
freq.
Pr.1-00
Jog
Freq.
Pr.1-14
Accel
Time
Pr.1-13
Decel
Time
Pr.1-13
Time
Jog operation
command
ON
OFF
1 - 16
A
uto-Acceleration / Deceleration
F
actory Setting : d 0
Settings d 0 Linear acceleration / deceleration.
d 1 Auto acceleration, linear Deceleration.
d 2 Linear acceleration, auto Deceleration.
d 3 Auto acceleration / deceleration
d 4 Linear acceleration/deceleration, and stall prevention
during deceleration.
d 5 Auto acceleration, linear deceleration, and stall prevention
during deceleration

If the auto accel/decel is selected, the AC drive will accel/ decel in the fastest and
smoothest means possible by automatically adjusting the time of accel/decel.
1 - 17
A
cceleration S-Curve Factory Setting: d 0
Settings d 0 to d 7
1 - 18
D
eceleration S-Curve
F
actory Setting: d 0
Settings d 0 to d 7

These two parameters allow you to configure whether the acceleration and/or
deceleration ramps are linear or S-shaped. The S-curve is enabled when set at
d1-d7. Setting d1 offers the quickest S-curve and d7 offers the longest and
smoothest S-curve. The AC drive will not follow the accel/decel time in Pr.1-09 to
Pr.1-12. To Disable the S-curve, set Pr.1-16 and Pr.1-17 to d0.

Delta VFD-L Series Specifications

General

Control Method	V/F Control
Output Voltage	0 to Input Voltage
Cooling Method	Fan Cooling
Enclosure Rating	IP20
Overload Capacity	150% for 60 seconds
Protection	Over-voltage, Over-current, Overheat, Under-voltage, Short circuit
Braking Unit	Built-in
Operating Temperature	-10°C to 50°C (14°F to 122°F)
Digital Inputs	5 programmable digital inputs
Analog Input	0-10V, 4-20mA
Communication Interface	RS-485 (Modbus)
Storage Temperature	-20°C to 60°C (-4°F to 140°F)
Humidity	90% RH, non-condensing
Altitude	Up to 1000m without derating
Input Voltage	200-240V, 380-480V
