5
VFD-L Series
DELTA ELECTRONICS, INC. ALL RIGHTS RESERVED
5-7
1 - 13
J
og Accel Time
Factory Setting: d 10.0
Settings d 0.1 to d 600Sec Unit: 0.1Sec
This parameter can be set during operation.
1 - 14
J
og Decel Time
Factory Setting: d 10.0
Settings d 0.1 to d 600Sec Unit: 0.1Sec
This parameter can be set during operation.
1 - 15
J
og Frequency
F
actory Setting : d 6.0
Settings d 1.0 to d 400Hz Unit: 0.1Hz
This parameter can be set during operation.
The JOG function can be selected using Multi-function Input terminals (Pr.4-04 to
Pr.4-08) if programmed for Jog (d10). When the Jog terminal is “closed”, the AC drive
will accelerate from Minimum Output Frequency (Pr.1-05) to Jog Frequency (Pr.1-14).
When the Jog terminal “open”, the AC drive will decelerate from Jog Frequency to zero.
The accel/decel time is decided by the Jog accel/decel time (Pr.1-13). During operation,
the AC drive can not perform Jog command. And during Jog operation, other operation
commands can not be accepted, except command of RUN/STOP key on the digital
keypad.

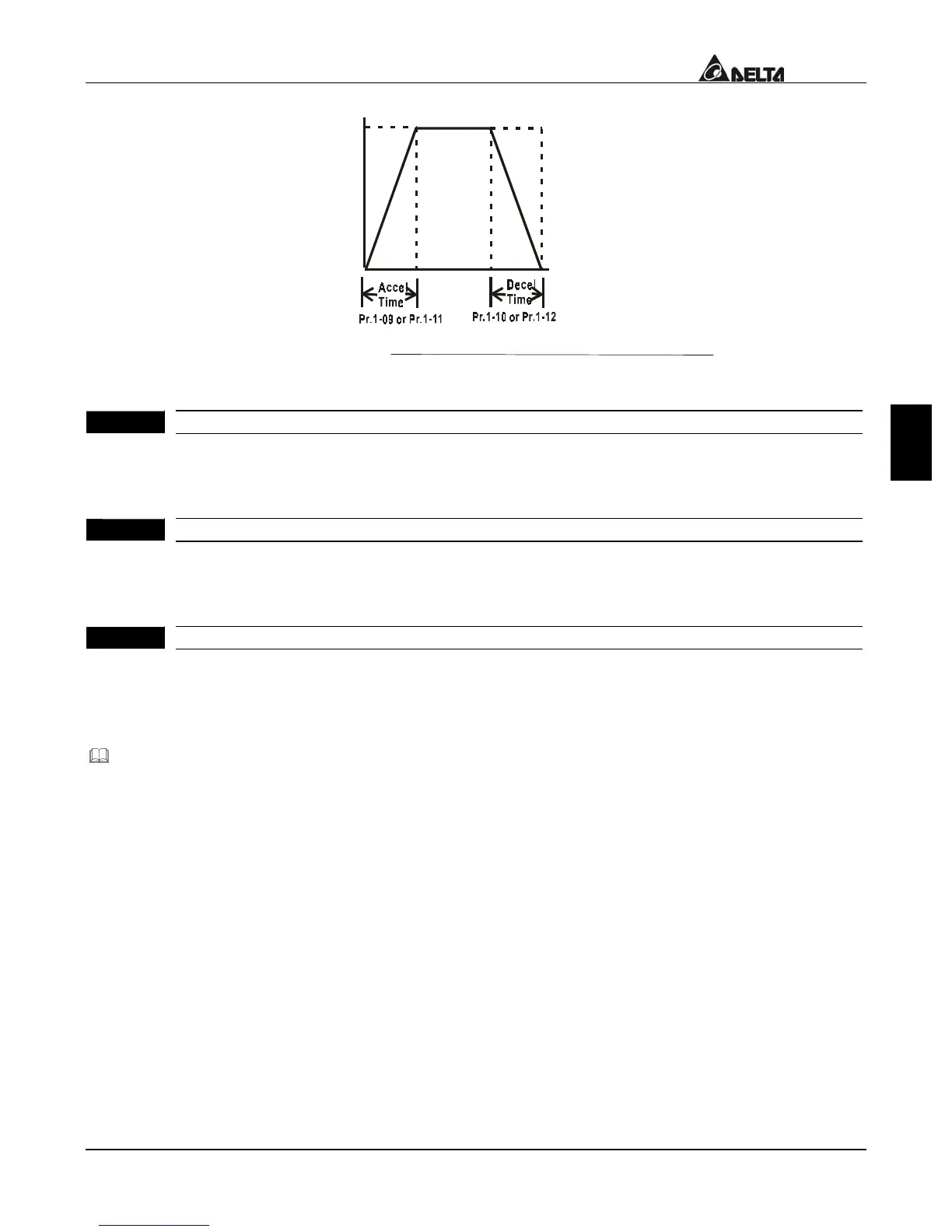

Time
Frequency
Max.
Output
Freq.
Pr.1-00
Actual Accel/Decel Time=
Accel/Decel Time x(Master Freq.-Min.Output Freq.)
Max. Output Freq.
